Optical Glass Bk7 Quartz Flange Dome Lens for Underwater Camera with Coating
Optical Glass Bk7 Quartz Flange Dome Lens for Underwater Camera with Coating
Item Number:X-P22D5X84W01Y
Optical dome are hemispheric windows which provide a protective boundary while allowing a clear field of view between two environments. Dome lens are typically made of two parallel surfaces. VY Optoelectronics Co.,Ltd. can customize different dome lenses according to your requirements.
- Outer Diameter: 3mm - 300mm
- Thickness: 1mm-30mm
- Dimension Tolerance: +/-0.05mm or better
- Surface Quality: 60-40 or better
- Surface Accuracy: 1 lambda or as requested
- Centration: 1 arc min or customized
- Coating: Optional
What is optical dome lenses?
Optical dome lenses provide protective boundaries while allowing for a clear view between two environments.
An optical dome is a lens with two concentric spheres. Sometimes they are referred to as curved planar parallel plates.
VY Optics provides dome lenses of various materials.
What is a dome lenses used for?
Domes are ideal for underwater and split-level (half over/under) photography, because they correct for aberrations that occur as light travels at different speeds above and below water.
Why choose optical dome lens?
Domes are ideal for underwater and split-level (half over/under) photography, because they correct for aberrations that occur as light travels at different speeds above and below water.

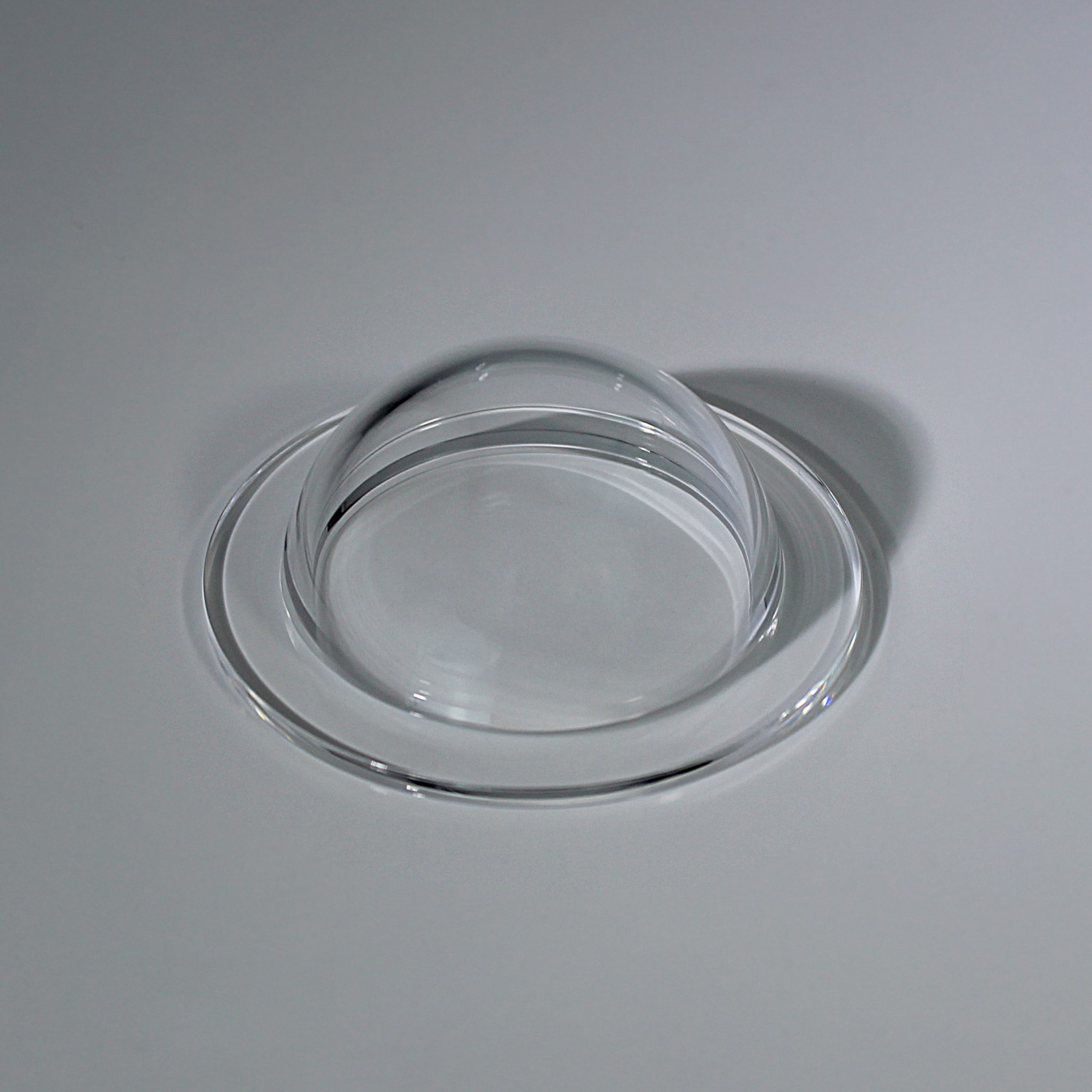

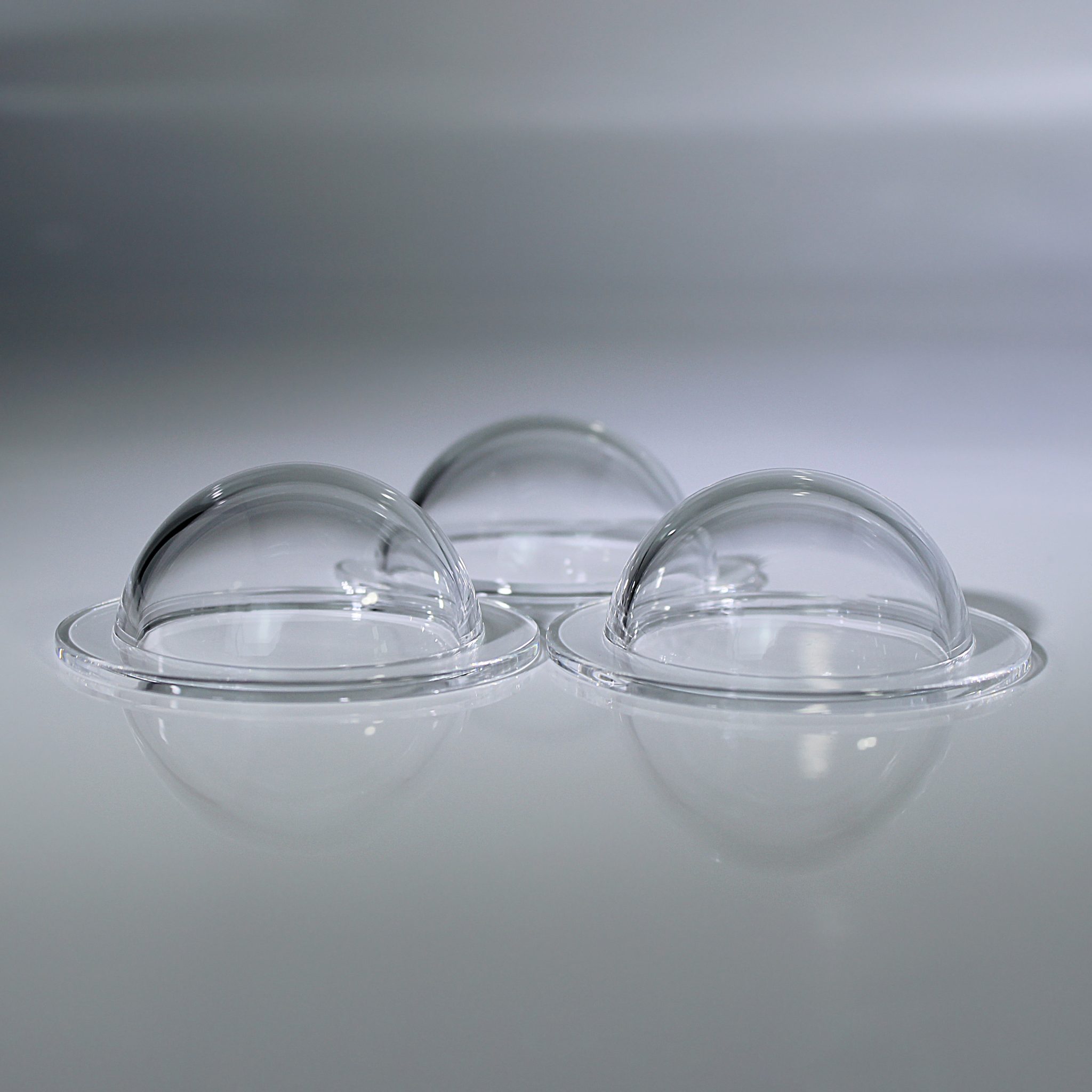

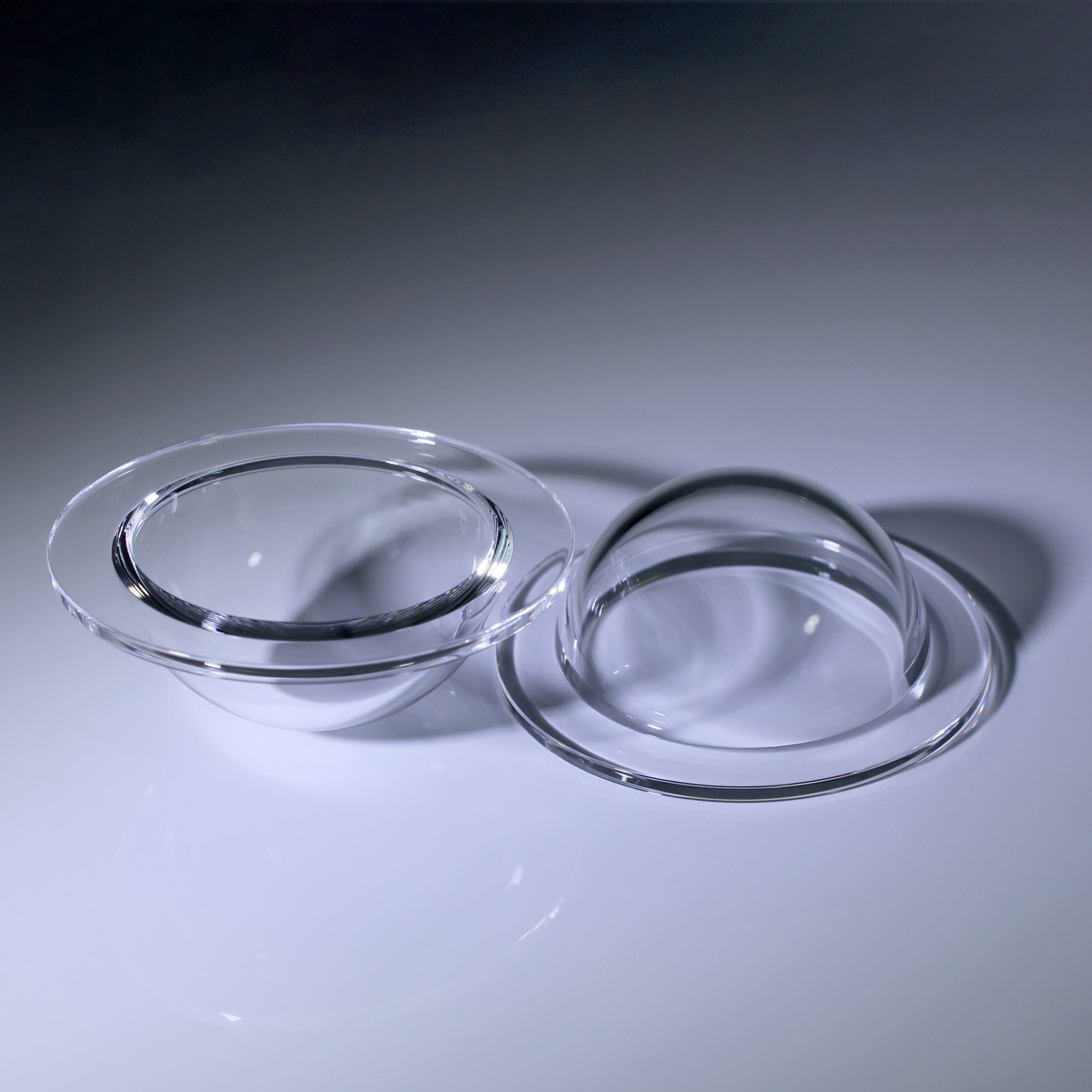

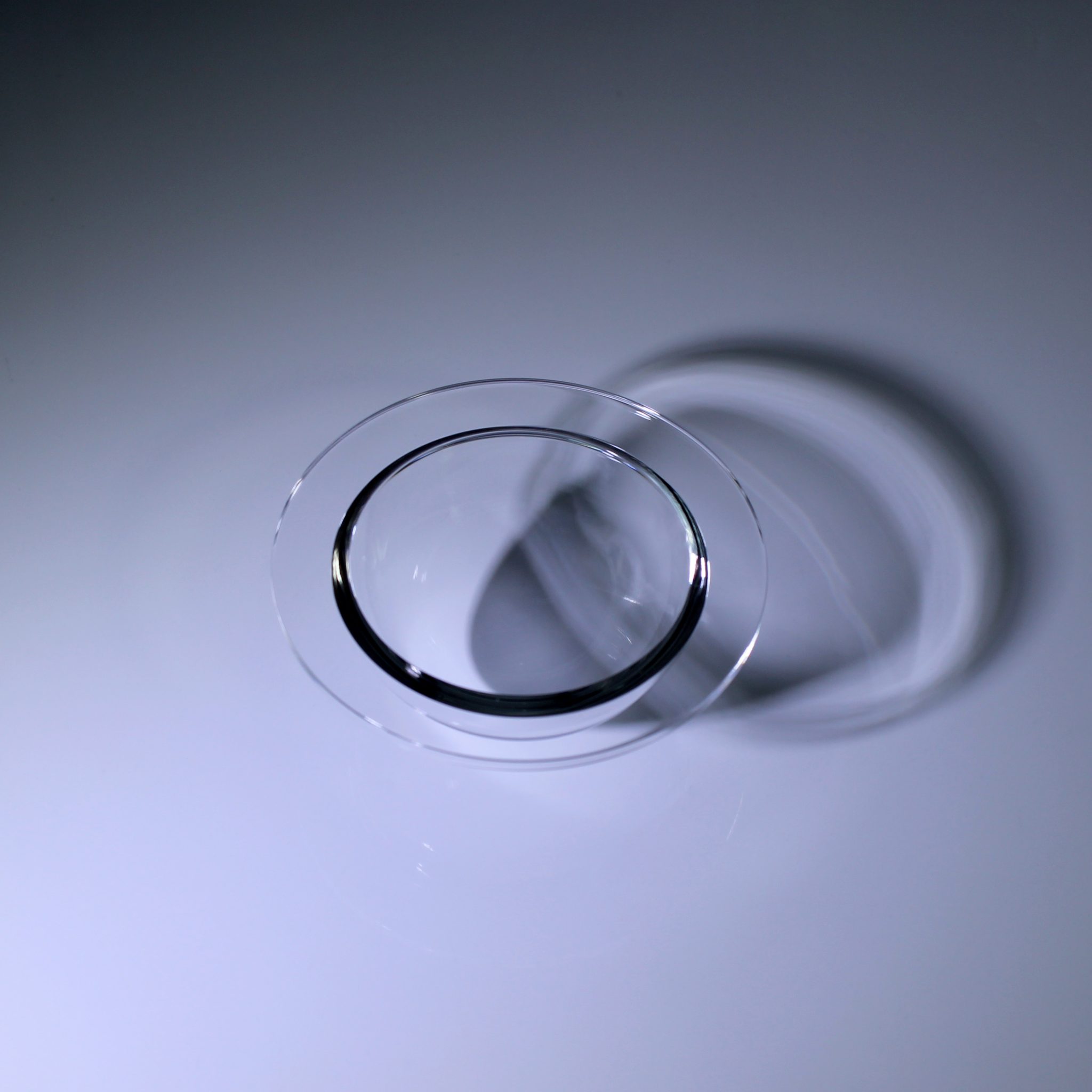

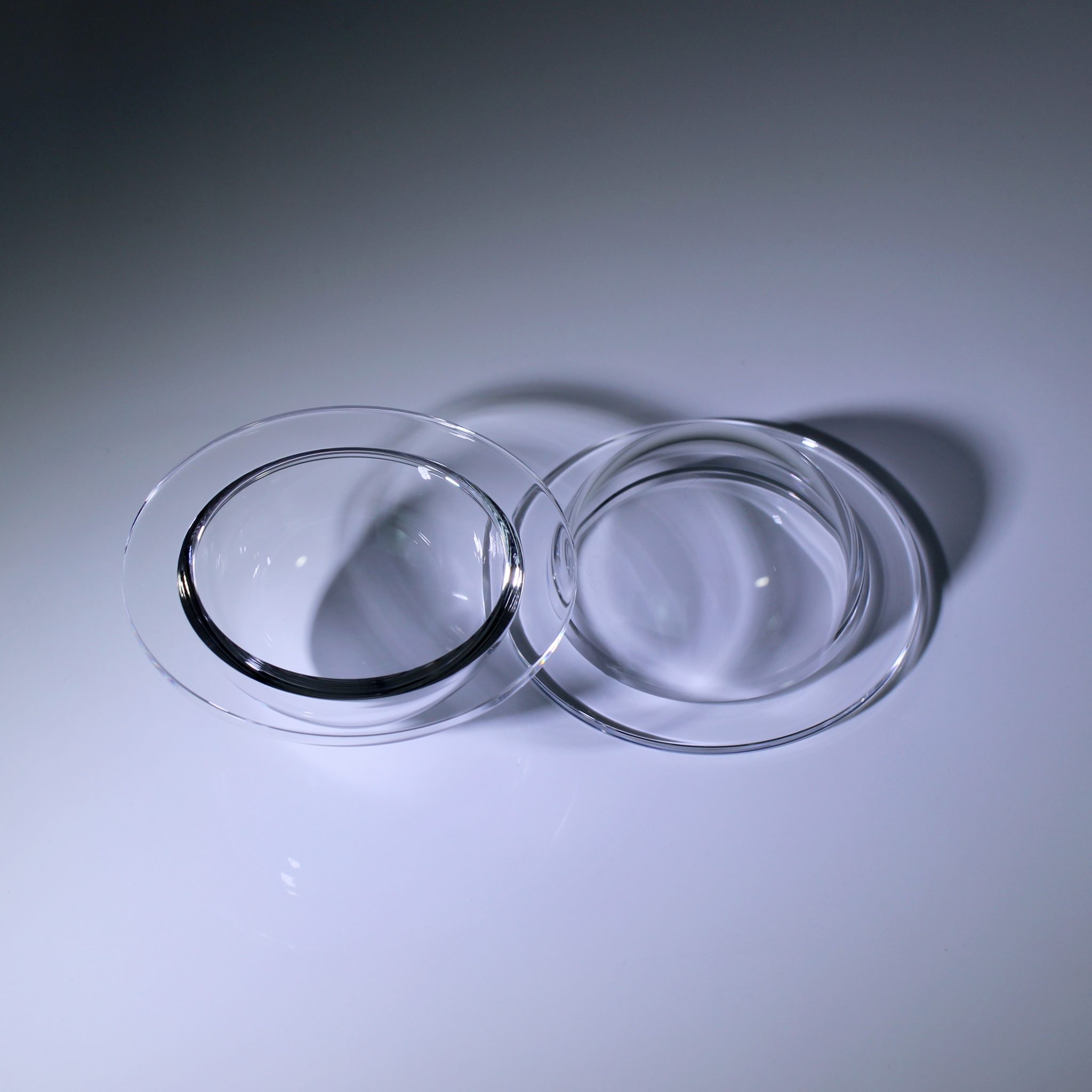

Picture display of VY hemispherical optical Sapphire dome lens
Vedio of quartz flange glass dome
Specification of flange dome lens
| Material | Quartz |
| Thickness | 50mm |
| Diameter | 2mm |
| Surface Quality | 60/40 |
Some optical dome lenses customized by VY
People also ask
- What does a dome do for underwater photography?
Domes are essential underwater when shooting wide angle and zoom lenses. A flat port magnifies objects the same way your dive mask does, and it turns into a port hole when shooting wide lenses.
- Do dome cameras have night vision?
Most dome cameras have a built-in infrared LED light for night vision, which enables them to provide high quality video surveillance. Apart from that, dome cameras are generally encased in durable covers to avoid vandalism and damage, making them an ideal option when using in exposed areas.
- What is a dome in photography?
The dome port is preferable for underwater photography with wide lenses, while the flat port should be utilized if the shot starts or ends above water, or if you need to capture a close-up with a long lens. Dome Port – The dome port is a concentric lens that acts as an additional optical element to the camera lens.
Want to learn more / get a quote? Just click here to contact us now~
