Factory High Quality OEM BK7 Glass Rod Lens Cylindrical Polished Lens
Item Number:X-P24C6S4401S
Rod Lenses are polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens.Rod Lenses used to focus collimated light into a line in laser and imaging systems are available in a range of micro sizes.
- Material: K9, BK7 and other optical glass
- Dimension: 0.8mm-20mm
- Surface Accuracy: lambda/10
- Size Tolerance: +/-0/0.1mm
- Angle Tolerance: +/- 1 degrees
- Coating: Optional
What is Rod lens?
Optical Glass rod lens are cylindrical lenes which has the geometrical form of a cylinder and has a polished mantle, while the two flat end surfaces may be ground. It is analogous to a ball lens for
focusing in both directions.
Types of Optical Rod Lenses
Rod lenses are available with different optical materials, glasses like fused silica and BK7, but also with crystalline materials like YAG or silicon, e.g. for infrared optics.
A rod lens can have diameters of a few millimeters, but there are also cylindrical microlenses with substantially smaller diameters. Small-diameter rod lenses are frequently used as fast-
axis collimators for diode bars.

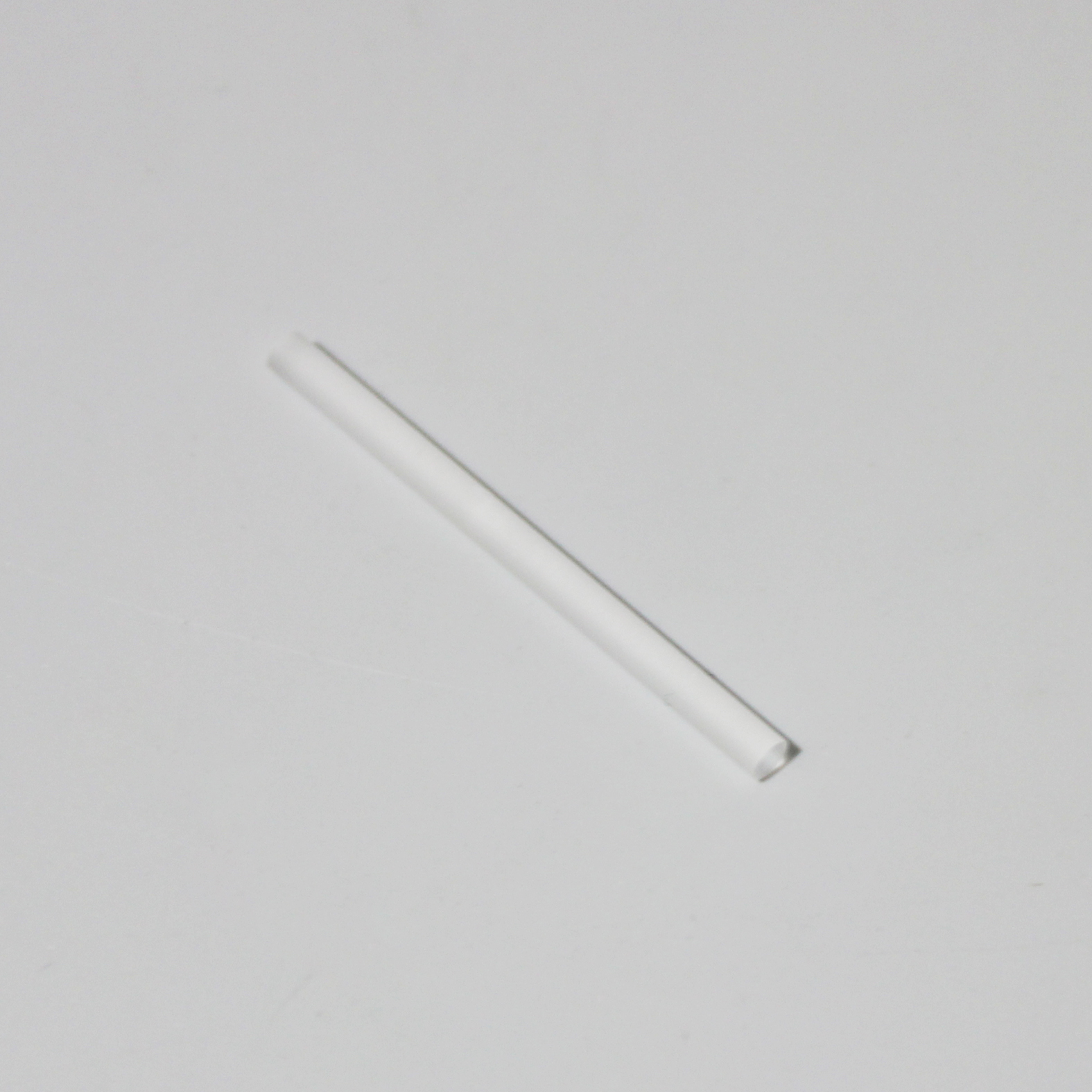

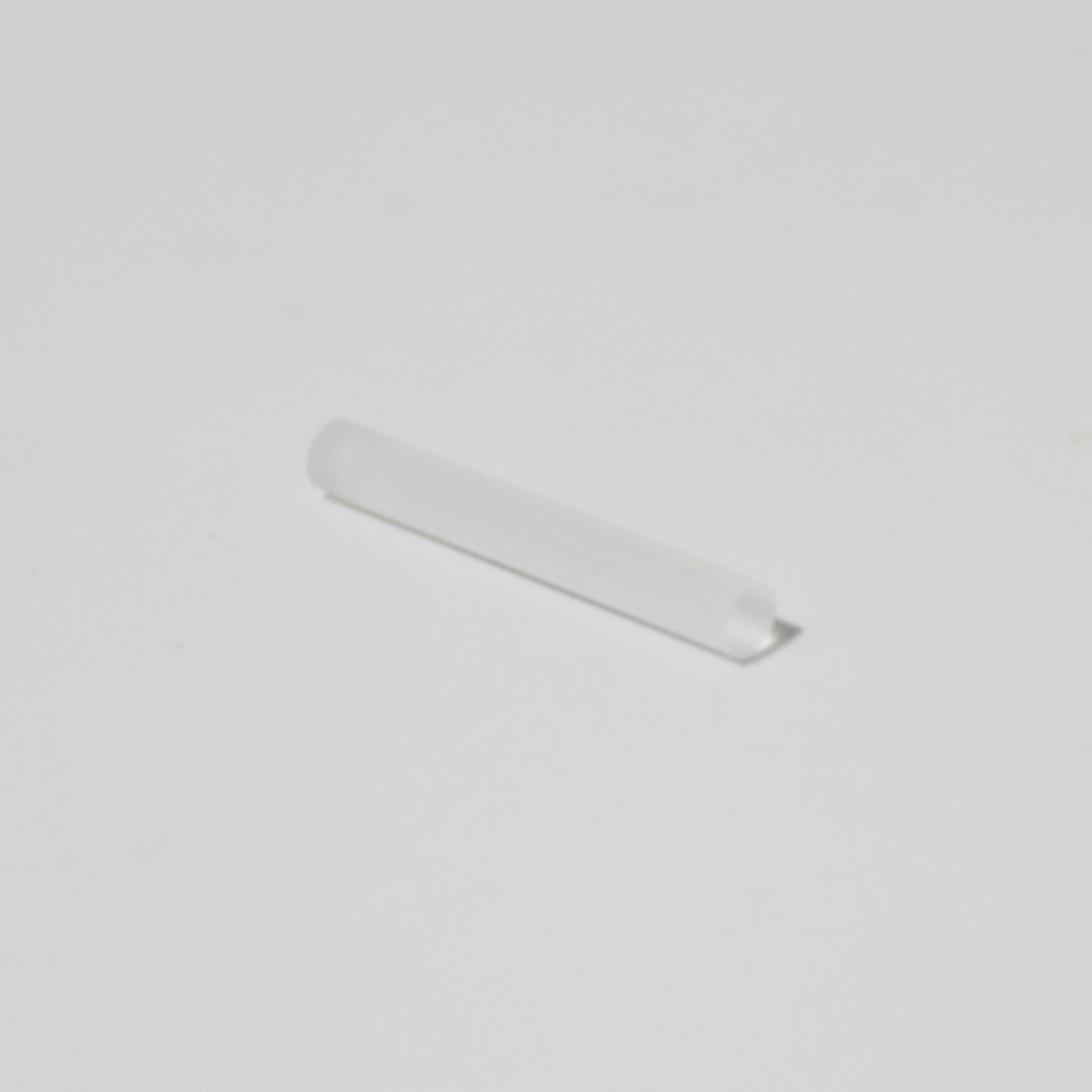

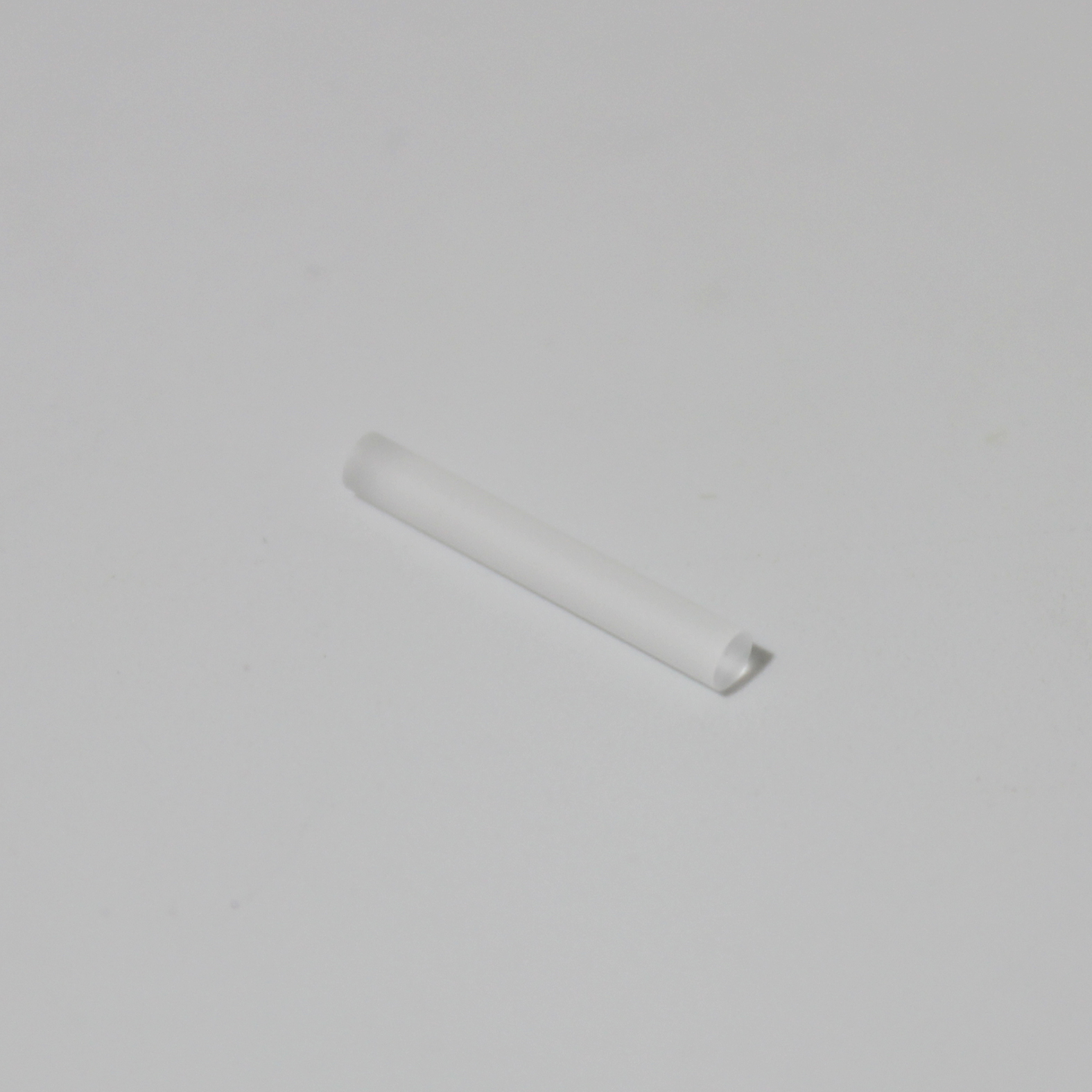

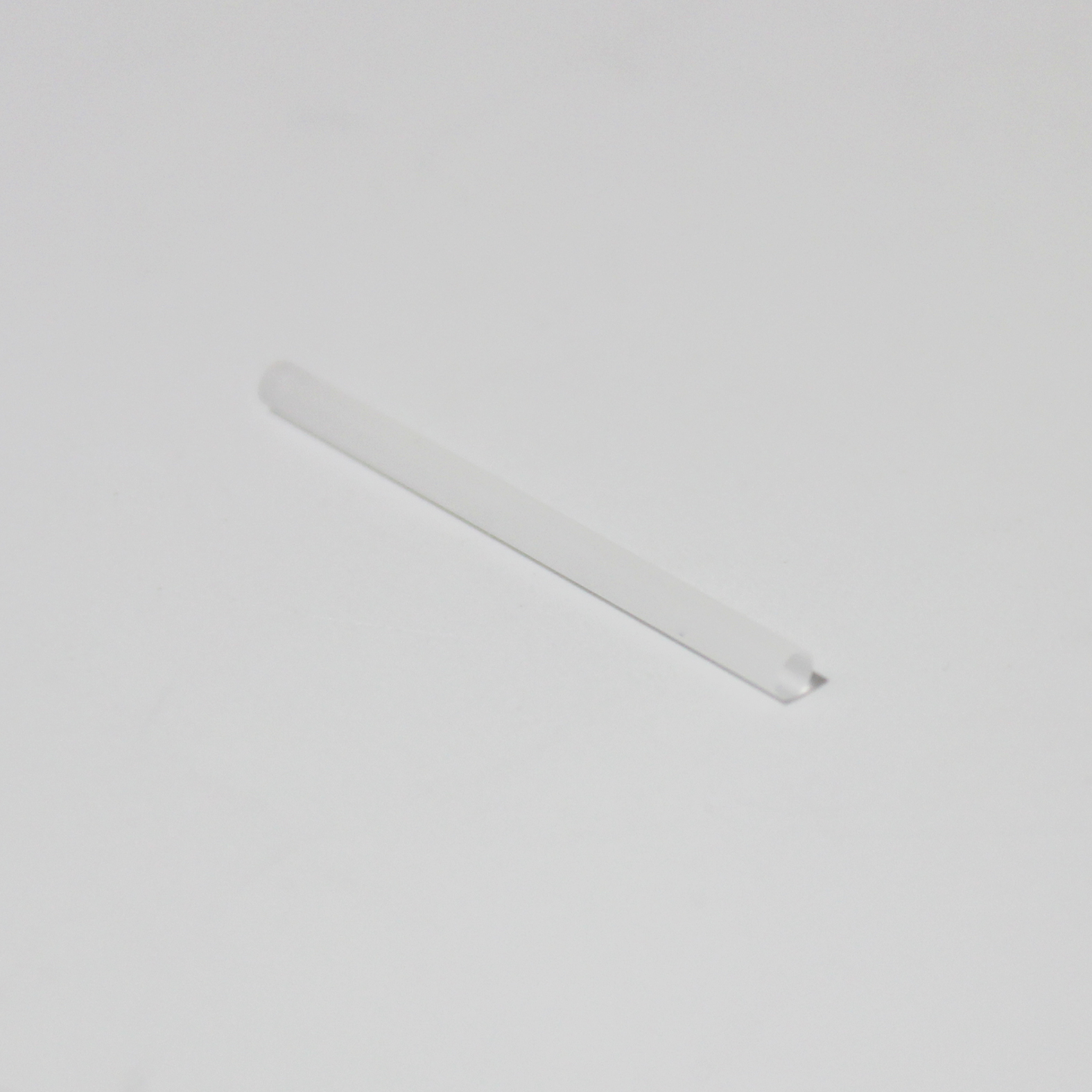

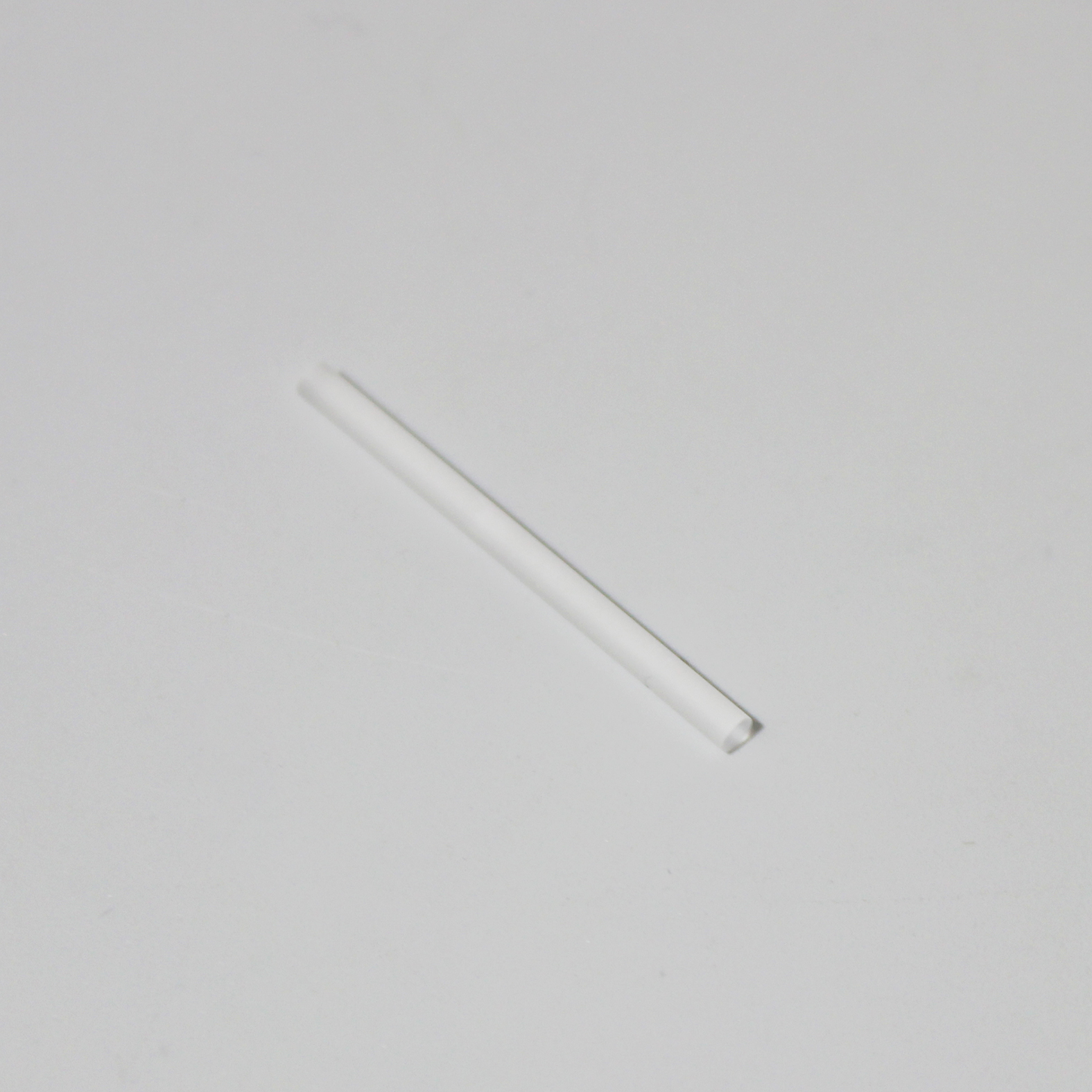

Pictures of VY Glass Rod Lens
Specifications of Custom Glass Rod Lens
Specification | Data |
Material | BK7 |
Length | 14.15mm/28.3mm |
Diameter | 2mm |
Detailed video of Custom Rod Lens
Focal Length of optical glass rod lens
There are two different definitions of focal length of a rod lens. The effective focal length, which is the distance between a plane through the center of the lens and the beam waist of an initially collimated input beam, is given by the equation f=nD/4(n-1)
Drawing of optical rod lenses
Optical Lenses Production workshop of VY Optics
People Also Ask
- What are lenses used for in optics?
Lens, in optics, piece of glass or other transparent substance that is used to form an image of an object by focusing rays of light from the object.
- What is the difference between spherical lens and GRIN rod lens?
Unlike a traditional lens, a GRIN lens affects the optical path by varying the index of refraction within the lens itself. In contrast to a spherical or aspheric lens, all optical path lengths (refractive index multiplied by distance) are the same in a GRIN lens due to the radially varying refractive index.
- How does a rod lens work?
Rod Lenses are a special variant of cylindrical lenses. They are complete rods where the light passes through the sides of the rod and focuses a line. Rod lenses have an outside face that is polished and the ends ground. The table below gives angular lengths of the line for a 1mm diameter laser beam.
- Is quartz the same as glass?
As mentioned previously, quartz is the main form in which silica occurs in nature. Quartz is a crystalline solid; so, while it can resemble glass both in terms of its appearance and its chemical makeup, it has very distinct properties from glass.
