Cylindrical Lens
Item Number:W-P20O1Y10001-20210824
Plano Convex Cylindrical Lens
- Material: N-BK7, N-SF2, H-ZLAF50B, N-LAF34etc.
- Dimension: 3mm-500mm
- Tolerance: +/-0.01mm
- Surface Accuracy: lambda/10
- Surface Quality: 10-5
- Clear Aperature: 95%
- Coating: AR @400-700nm, R≤0.5% or Optional
About cylindrical lens
Cylinder Lenses are typically used to focus incoming light to a line, or to change the aspect ratio of an image. Cylindrical Lenses have a single cylindrical surface that causes incoming light to be focused in only a single dimension, stretching the image. Cylinder Lenses are available with positive or negative focal lengths, ideal for laser line generation or anamorphic beam shaping to circularize laser outputs.

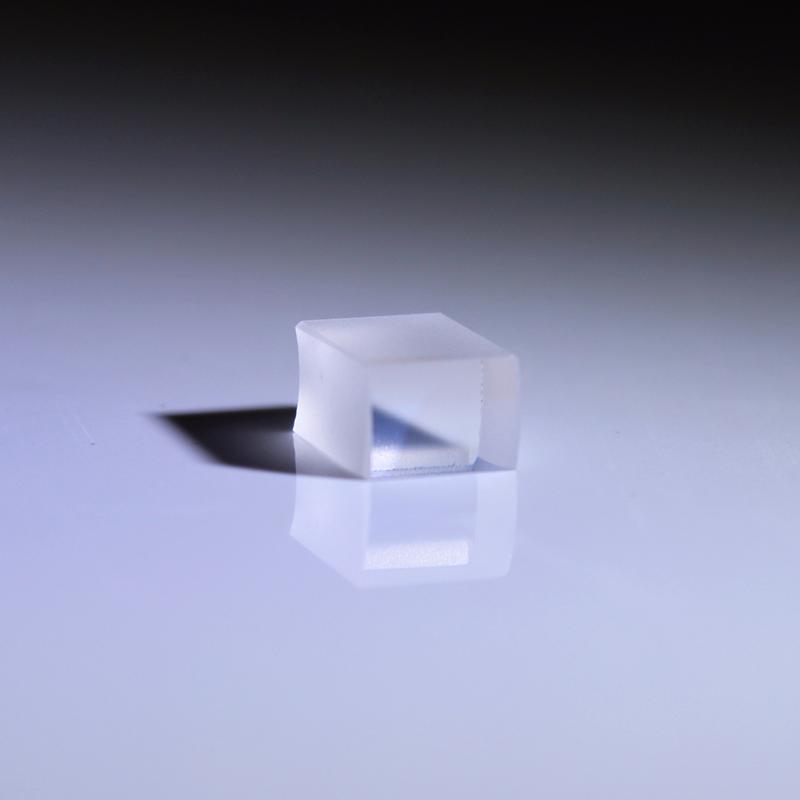

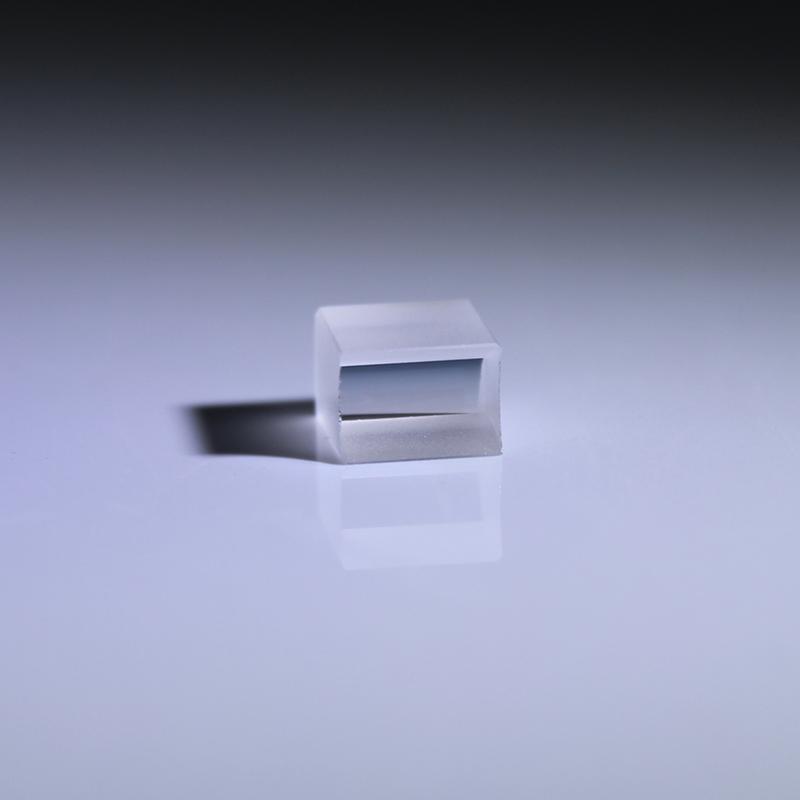

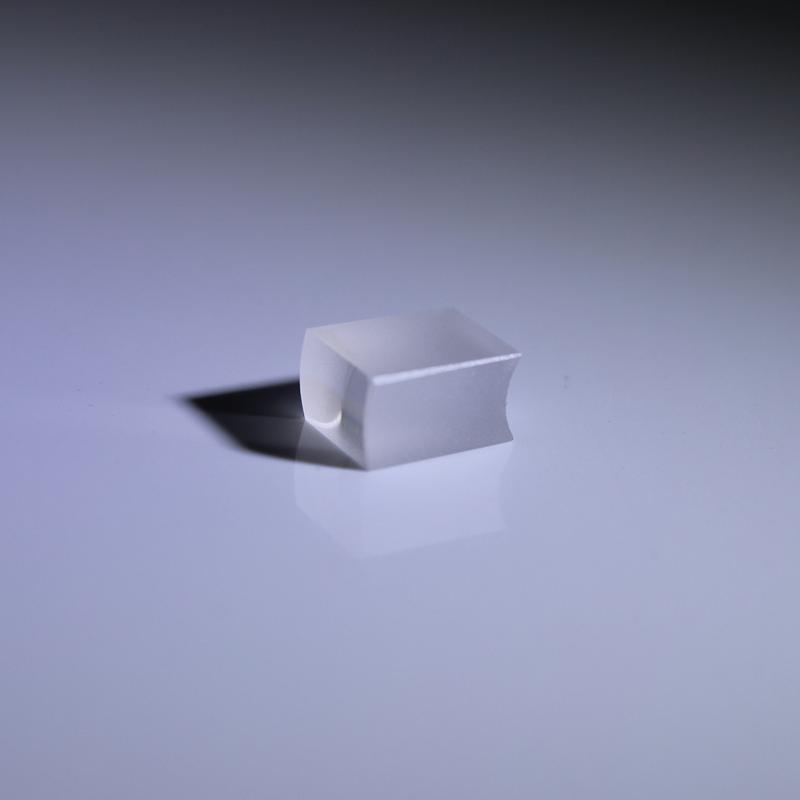

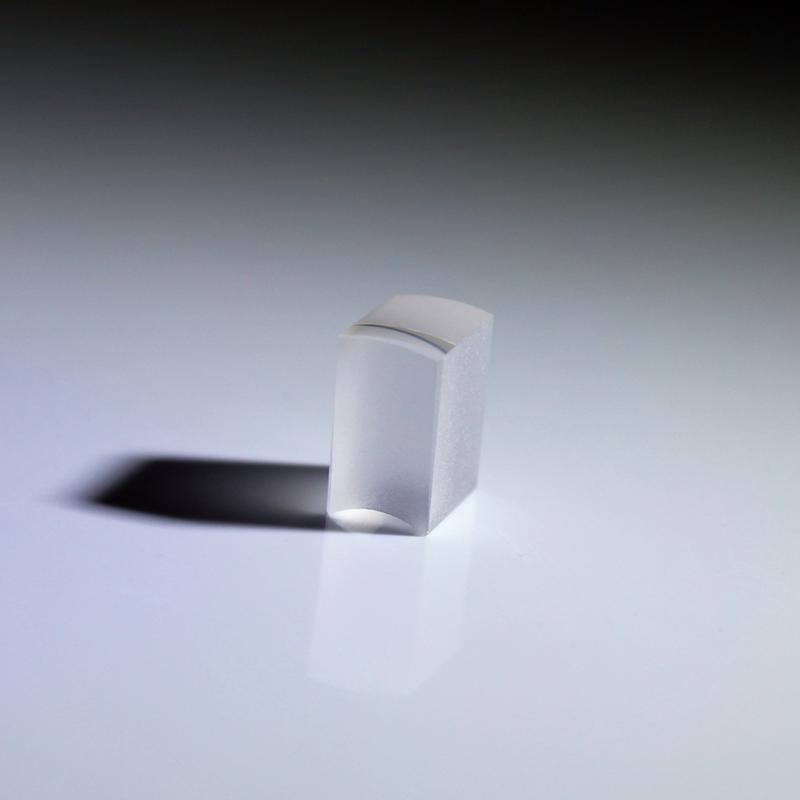

( picture show of our cylindrical lens)
Drawing of our cylindrical lens
Types of cylindrical lens
● Plano-Concave Cylindrical lenses have a negative focal length and are used for image reduction or to spread light.
● Plano-Convex Cylindrical lenses have a positive focal length, which makes them ideal for collecting and focusing light for many imaging applications.
● Double-Convex Lenses are used in image relay applications, or for imaging objects at close conjugates.
● Double-Convex Lenses have positive focal lengths, along with two convex surfaces with equal radii. Aberrations will increase as the conjugate ratios increase. DCV Lenses are used in a range of industries or applications.
● Meniscus Cylindrical Lens can increase the NA of the system while only adding slightly to the total spherical aberrations. The Negative Meniscus Lens is used to increase the focal length of another lens while maintaining the angular resolution of the optical assembly. This lens shape is best used when one conjugate is relatively far from the lens.
Specifications of our cylindrical lens
VY Optics offers a wide variety of Double-Convex Lenses in a range of substrates or anti-reflection coatings for maximum performance in the Ultraviolet (UV), Visible, or Infrared (IR). Anti-reflection coatings include UV-AR, UV Fused Silica or Calcium Fluoride (CaF2) substrates are also available for additional performance in the Ultraviolet (UV) or Infrared (IR) spectrums. UF Fused Silica Double-Convex Lenses are ideal for close conjugate imaging systems utilizing Ultraviolet (UV) illumination. Calcium Fluoride (CaF2) offers a very wide transmission range of 350nm - 7μm.
Material | BK7 or other optical materials |
Dimension Tolerance | +0.0 -- -0.1mm |
Center Thickness | +/-0.1mm |
Focal Length Tolerance | +/-1% |
Surface Quality | 20/10 |
Surface Figure | lambda/2 at 633nm on plano side |
Clear Aperture | >90% |
Chamfer | 0.25mm at 45 degree typical |
Coating | Optional |
Most commonly used and the earliest example of an achromatic lens is the achromatic doublet. An achromatic doublet is made from a pair of glasses, of which one is typically a concave and another is convex. The concave element of the doublet is composed of flint glass (with higher dispersion); the convex element, however, is made up of crown glass (with low dispersion). These two elements are placed (cemented) next to each other in such a manner that the chromatic aberration of the one element is balanced by the chromatic aberration of another. There are various types of achromatic lenses, which differ in the type of lens elements and optical properties.
