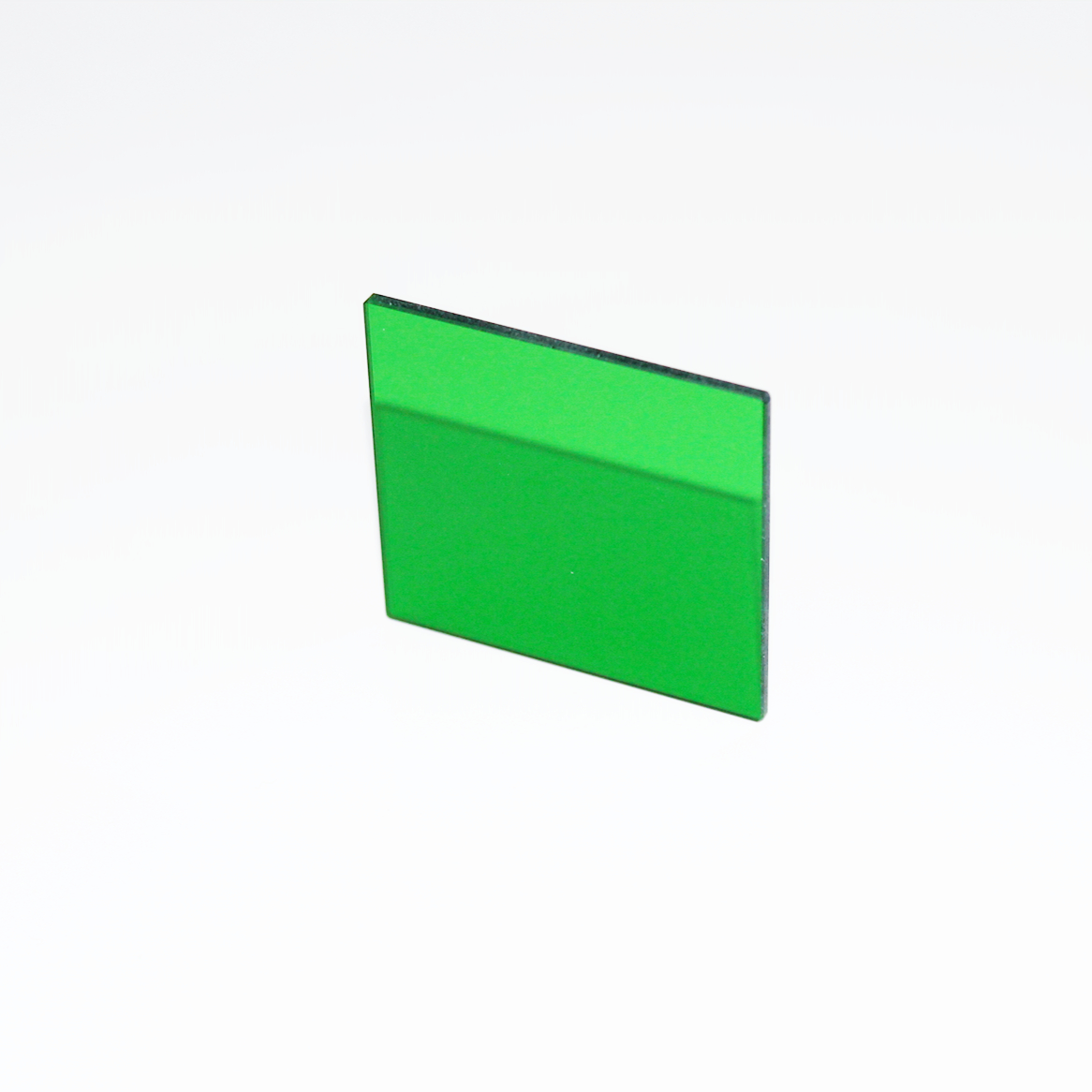

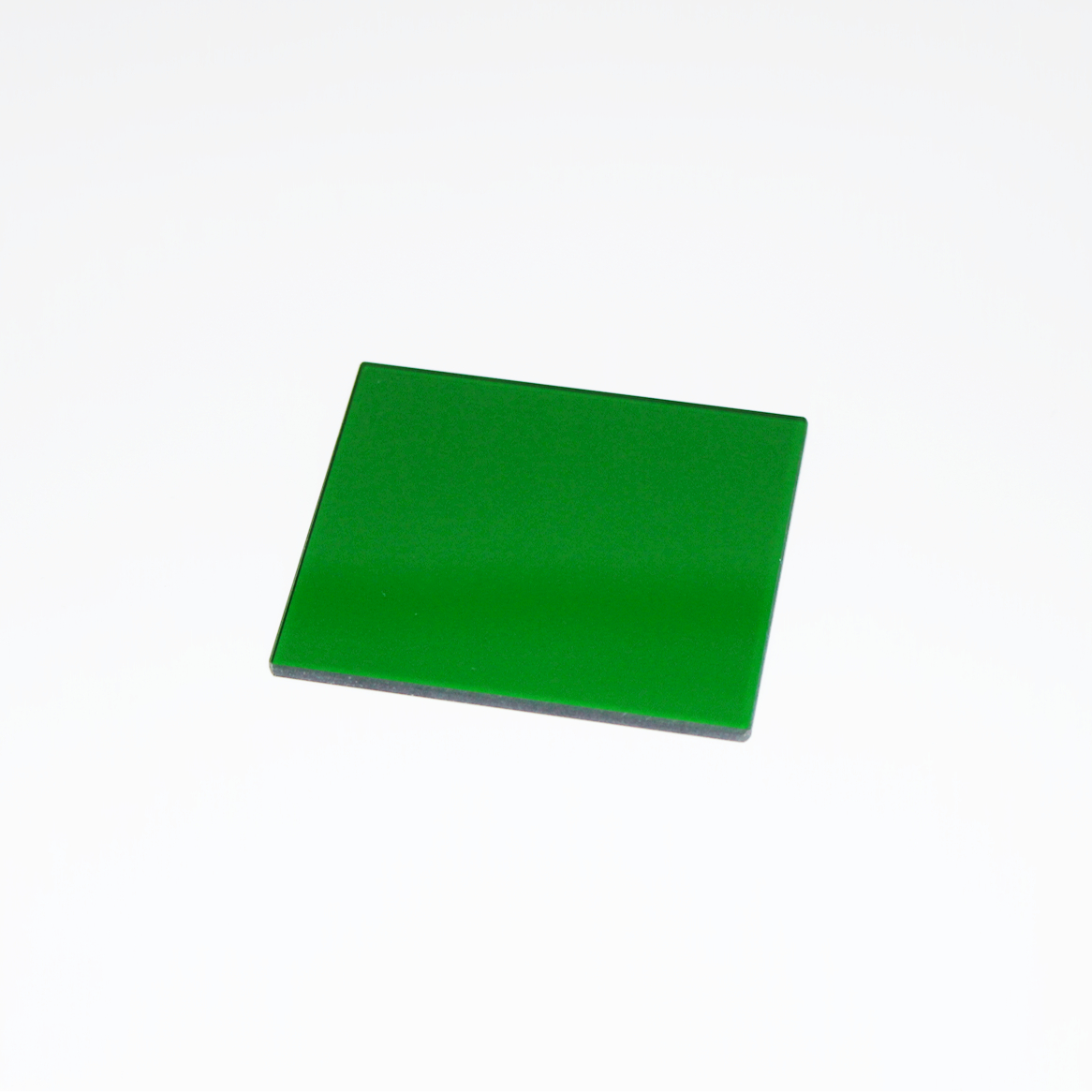

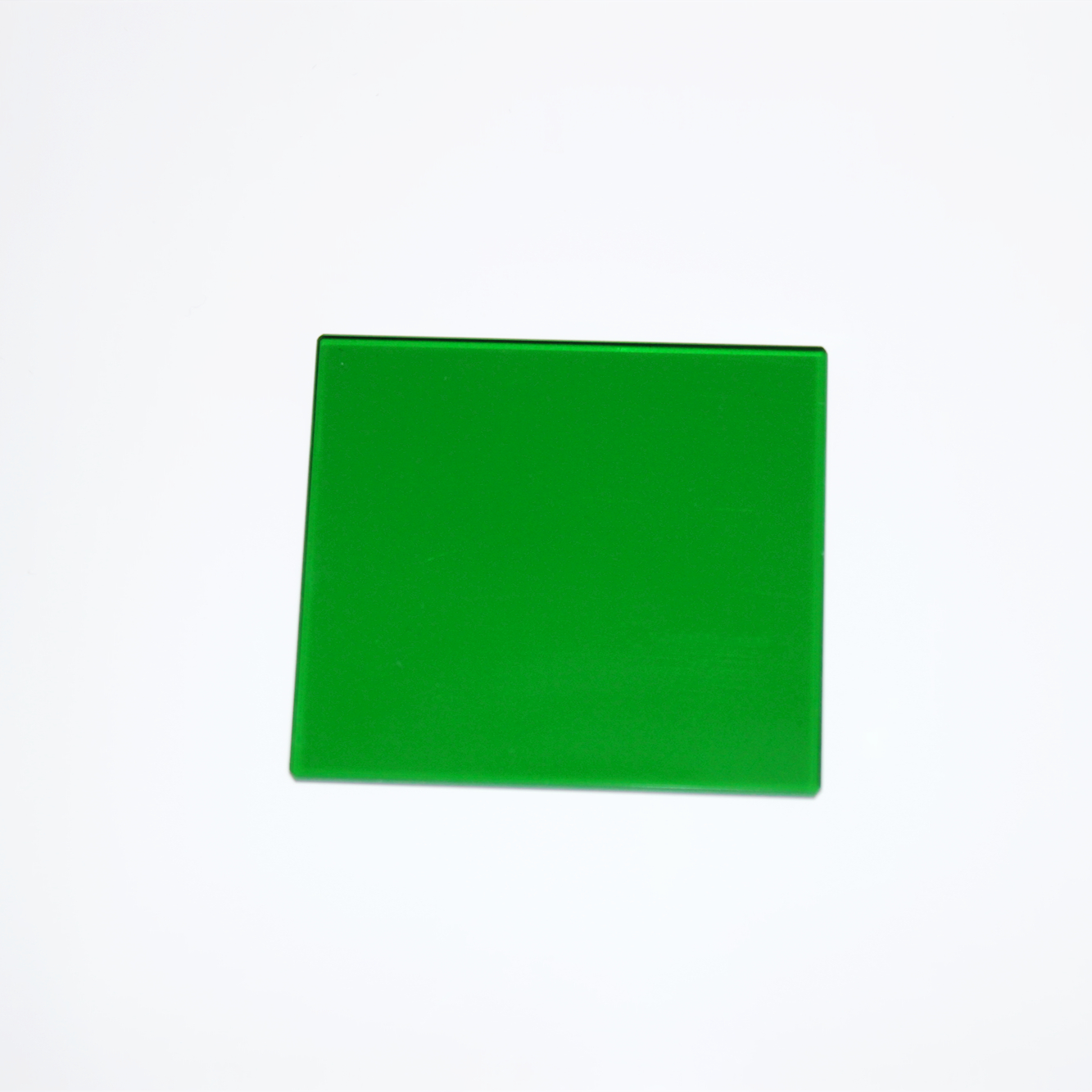

Colored Glass Filters
Colored Glass Filters
Item Number:VY_F002
- Dimension: 3mm-300mm
- Thickness: 1.0mmm, 1.10mm
- CWL: 550nm, 808nm, 920nm, 880nm or as requested
- FWHM: 20nm
- Transmission: 90%
Color Glass Filters are made from optically polished highest quality colored optical glass. The spectral properties of these color filters are uniform over the entire aperture and independent of angle of incidence.
An optical filter has a transmission band surrounded by two blocking bands that allow only a portion of the spectrum to pass. These filters have broad spectral bandwidths in either the ultraviolet, visible, or infrared spectrums. The nearly black filters absorb visible radiation. They are perfect for ultraviolet or infrared detection applications. UV filters are often used to selectively transmit the 254nm and 365nm mercury lines. IR filters are often used in nightvision and IR sensing systems.
VY Optoelectronics Co.,Ltd. can supply a full range of filter. They are short pass Filter, long pass Filter, band pass Filter, ultraviole Filtert, infrared Filter, heat absorbing Filter, and color temperature conversion filters. We use material by China to Schott, Hoya, and other manufacturers to process them. Metallic films, colored glasses and thin dielectric films filter are all available per your requirements.
