Silicon Plano Convex Lens

Material: Silicon
Dimension: Dia.2.6mm
Thickness: 1.00mm
Tolerance : +/-0.10mm

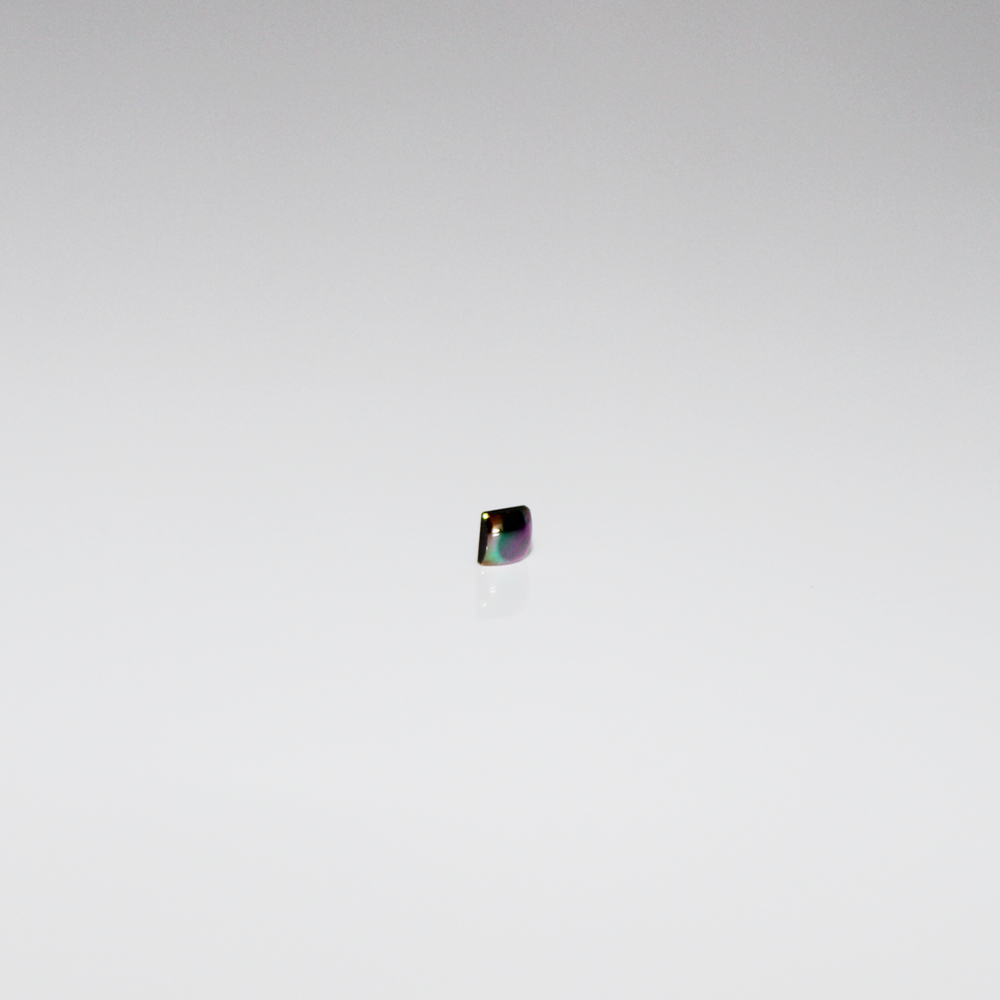

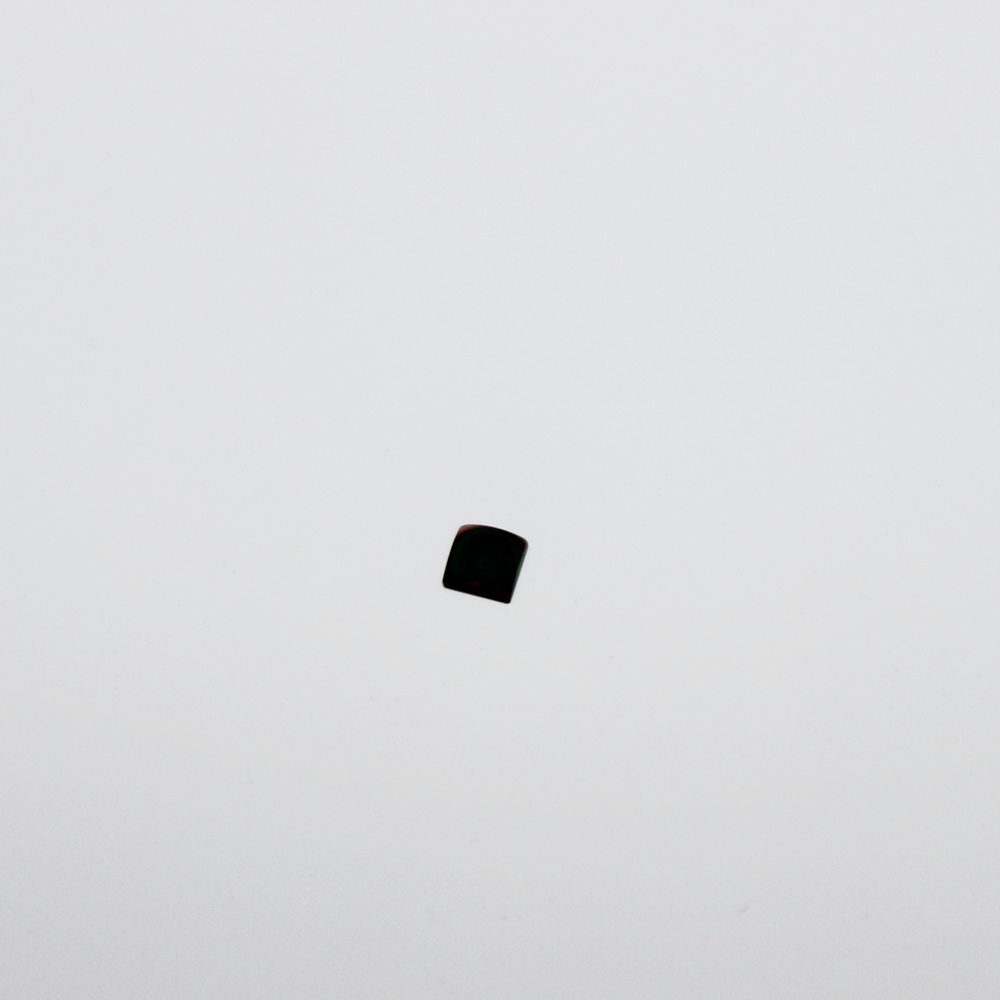

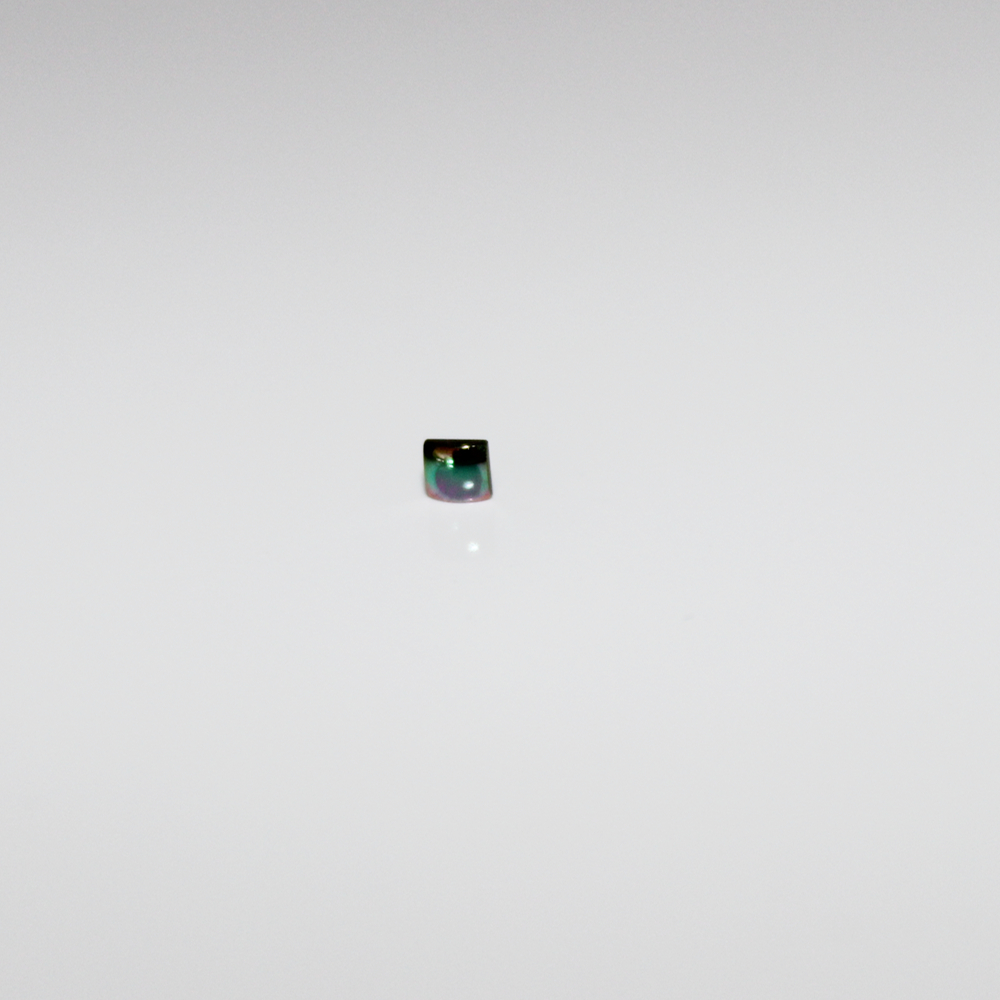

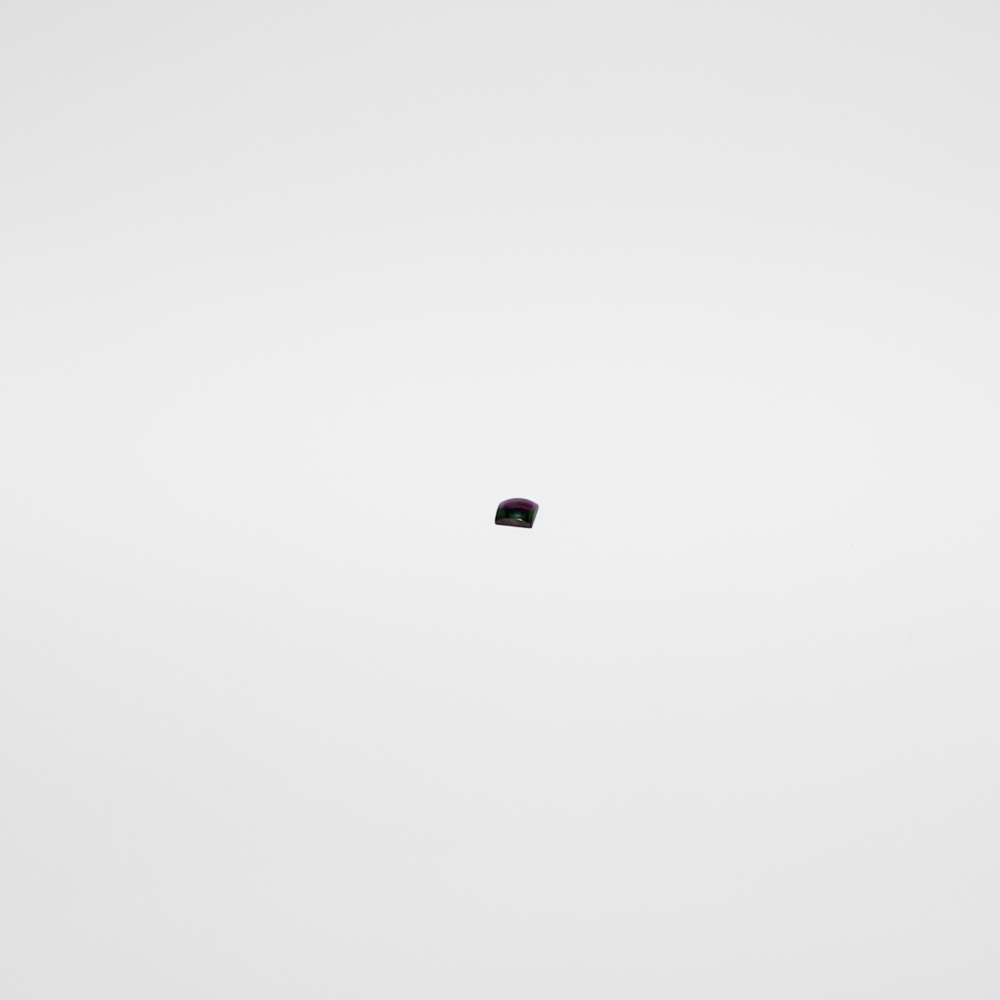

Si Lens shown in the picture is a convex lens, dimension is only 2.80mm, radius is 2.55mm, center thickness is 1mm.

Our Silicon Plano-Convex (PCX) Lenses feature precision polished surfaces, making them ideal for a variety of infrared applications, including Near-Infrared (NIR) imaging, and infrared spectroscopy. Available in a variety of focal lengths from f/1 through f/10, the lenses are offered uncoated or broadband anti-reflection coated.

  • Wavelength Range of 1.2 - 7μm
  • Low Density and Dispersion
  • Focal Lengths of 25 – 250mm Available
  • Additional Infrared Lenses Available in Popular Substrates
