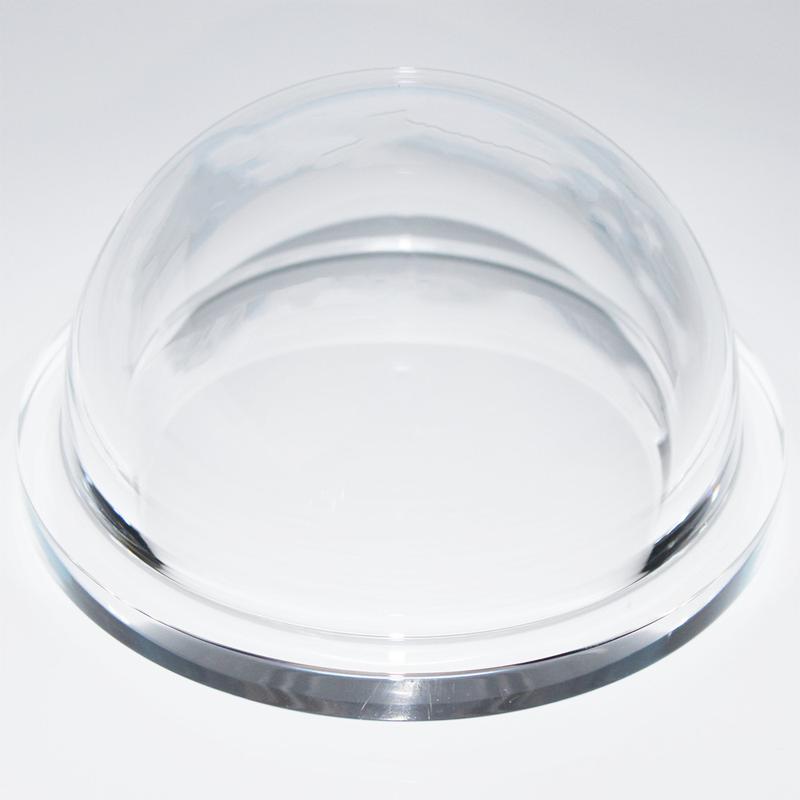

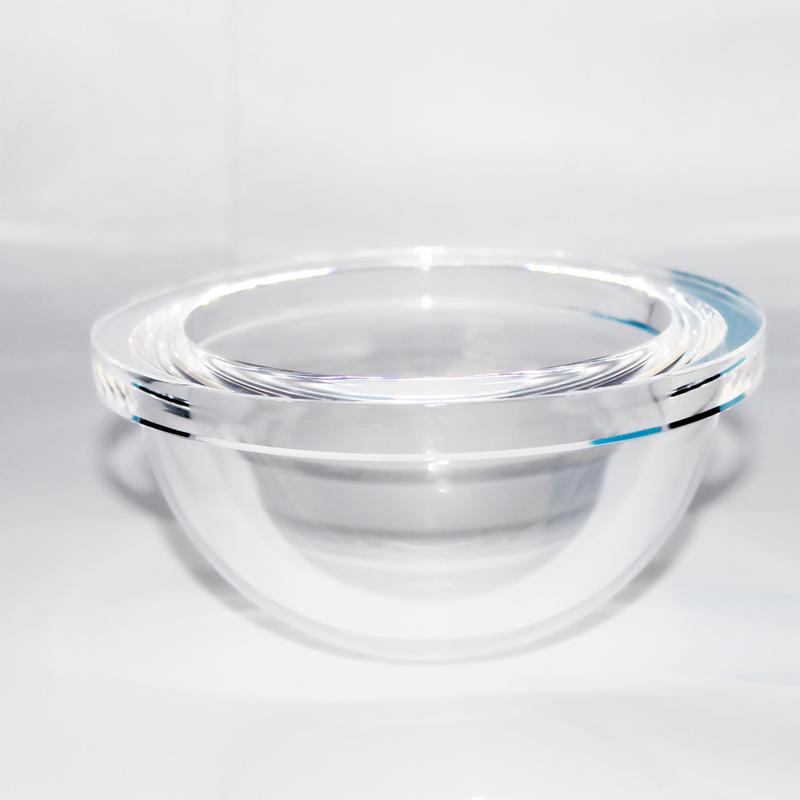

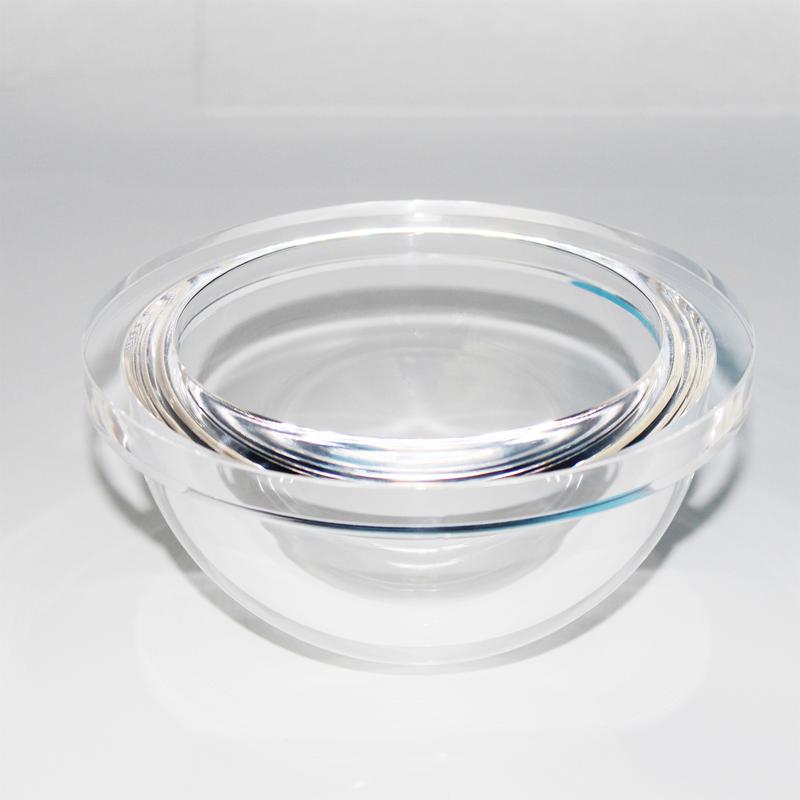

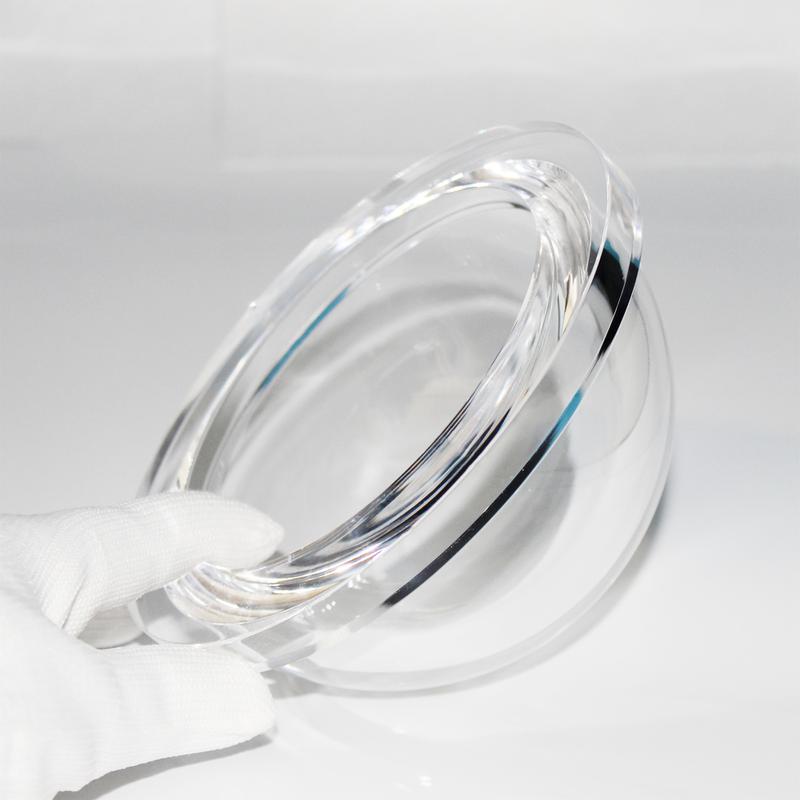

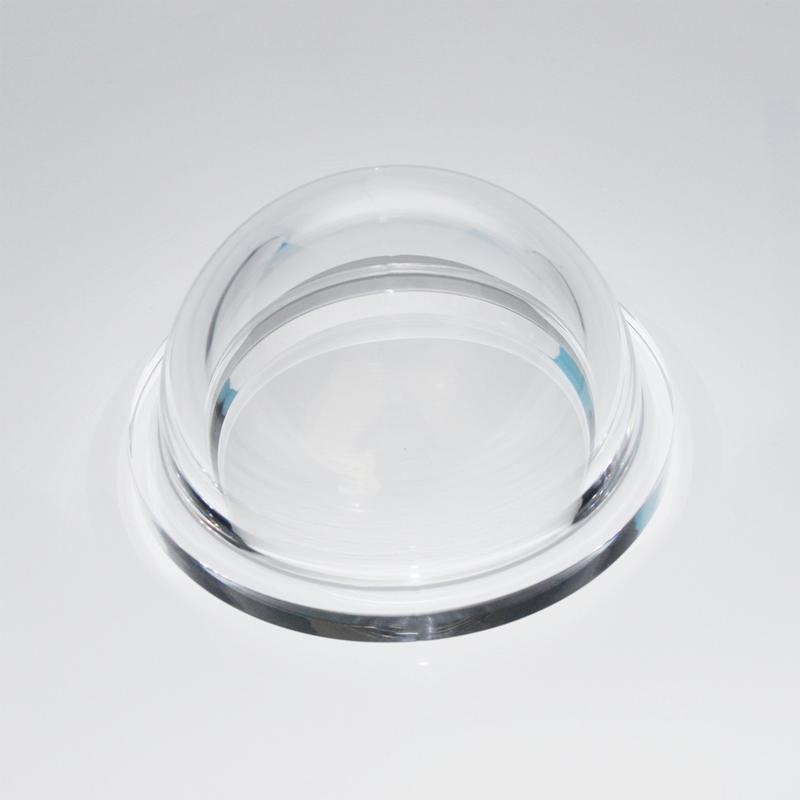

Dome Lens with Flange

Outer Diameter: 3mm - 300mm
Thickness: 1mm-30mm
Dimension Tolerance: +/-0.05mm or better
Surface Quality: 60-40 or better
Surface Accuracy: 1 lambda or as requested
Centration: 1 arc min or customized
Coating: Optional

    Dome is composed of two parallel optical surfaces. Among optics domes are unique because, unlike any other optical components, the key attribute of the dome is to have no optical effect. Generally a dome is often exposed to the environment. Accordingly, domes made from hard ceramic materials are preferred due to their ability to withstand wind and rain erosion.
     Domes are typically found in single-use defense applications and submersible vehicles for deep ocean exploration.

     VY produce optical glass dome or PMMA dome with different processing technology according to exact application, price will be reasonable and a best solution can be suggested.
