Customized High Quality Protecting Lidar Sensors Protective Glass Cover
Customized High Quality Protecting Lidar Sensors Protective Glass Cover
Item Number:X-VY240407
The upstream of the LiDAR industry chain mainly includes four major parts: laser emission, laser reception, scanning systems, and information processing. Among these four major parts, a large number of optical and electronic components form the foundation of LiDAR. Optical components are the basic components of optical systems, and most optical components play an imaging role, such as lenses, prisms, reflectors, etc.
- Outer Diameter: 3mm - 300mm
- Thickness: 1mm-30mm
- Dimension Tolerance: +/-0.05mm or better
- Surface Quality: 60-40 or better
- Surface Accuracy: 1 lambda or as requested
- Centration: 1 arc min or customized
- Coating: Optional

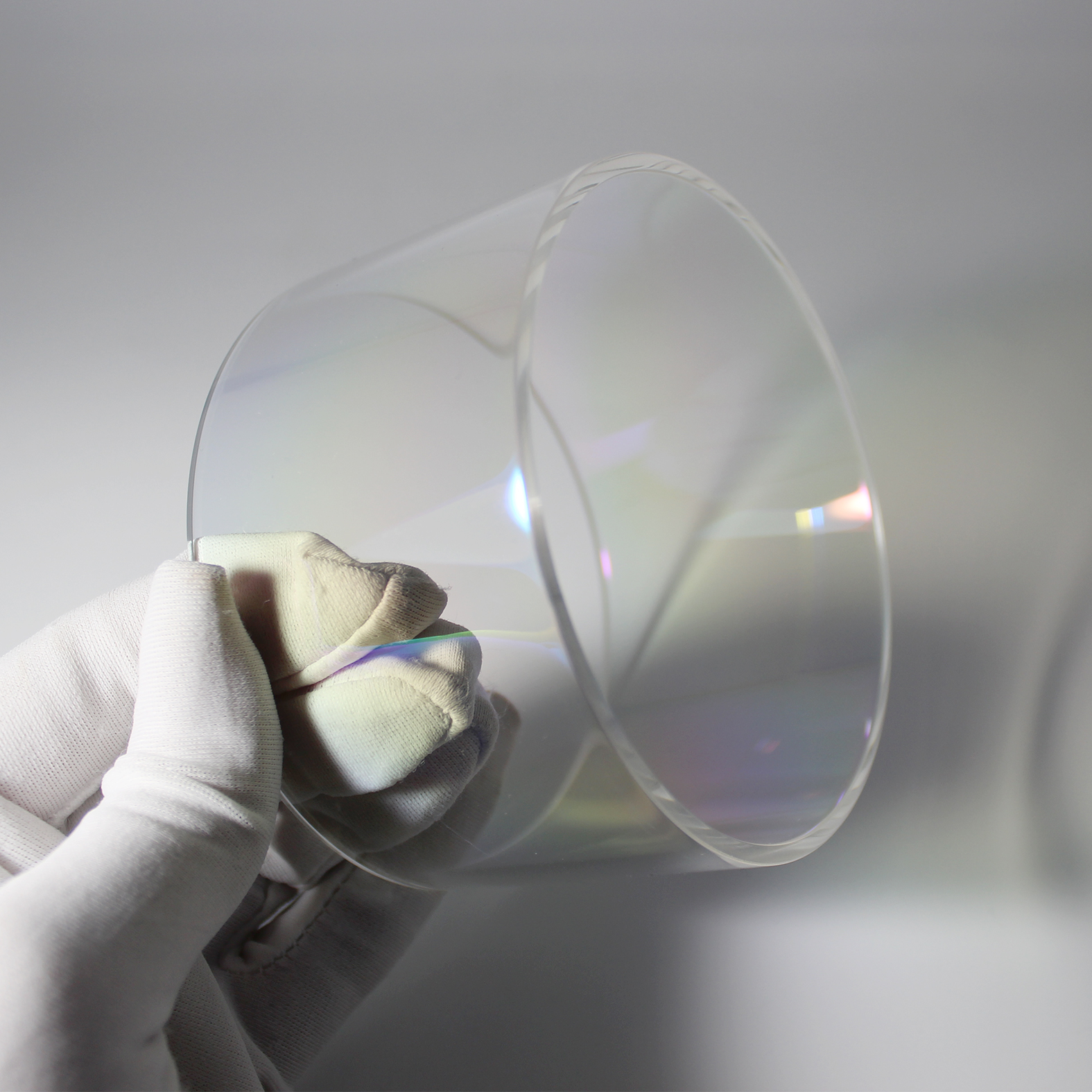

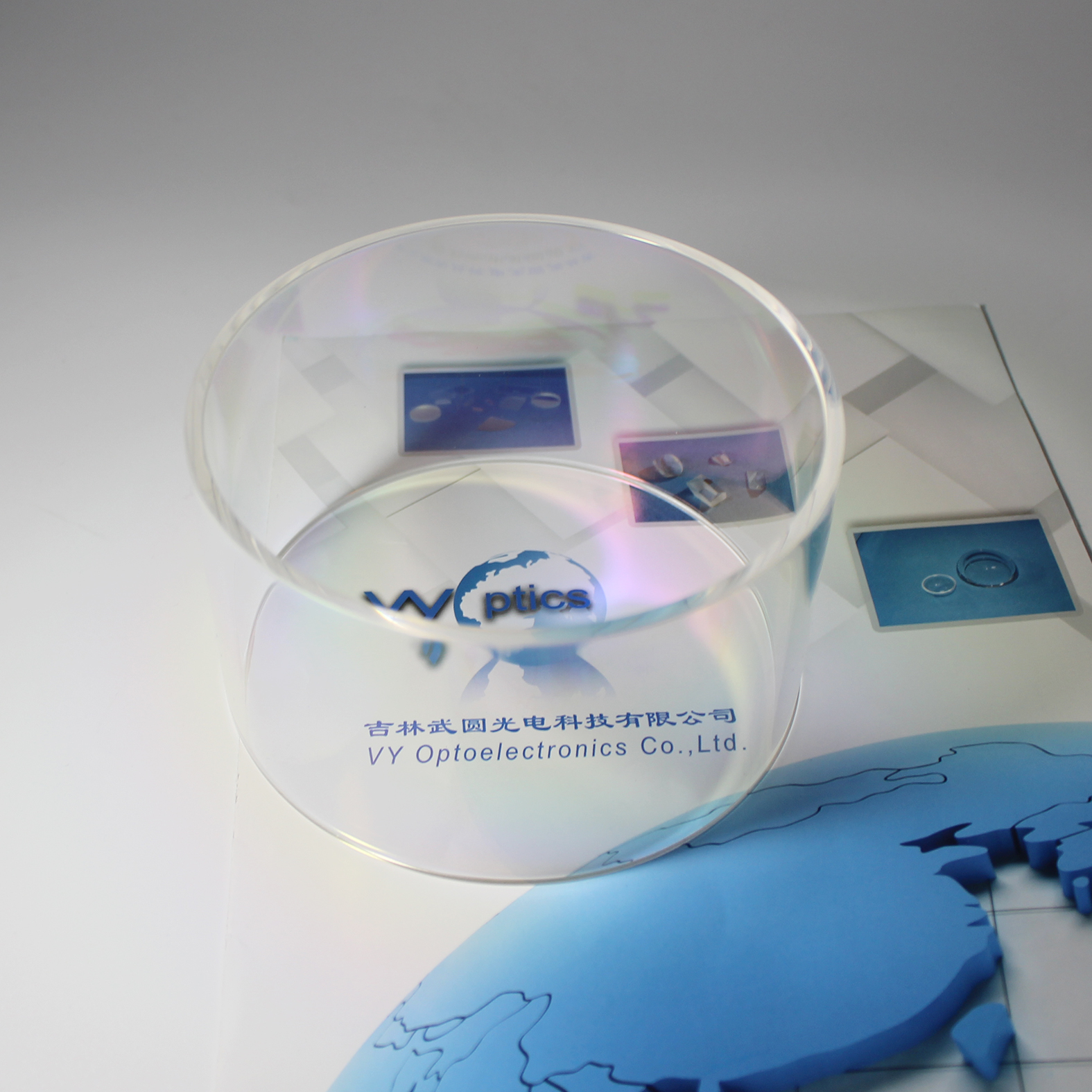

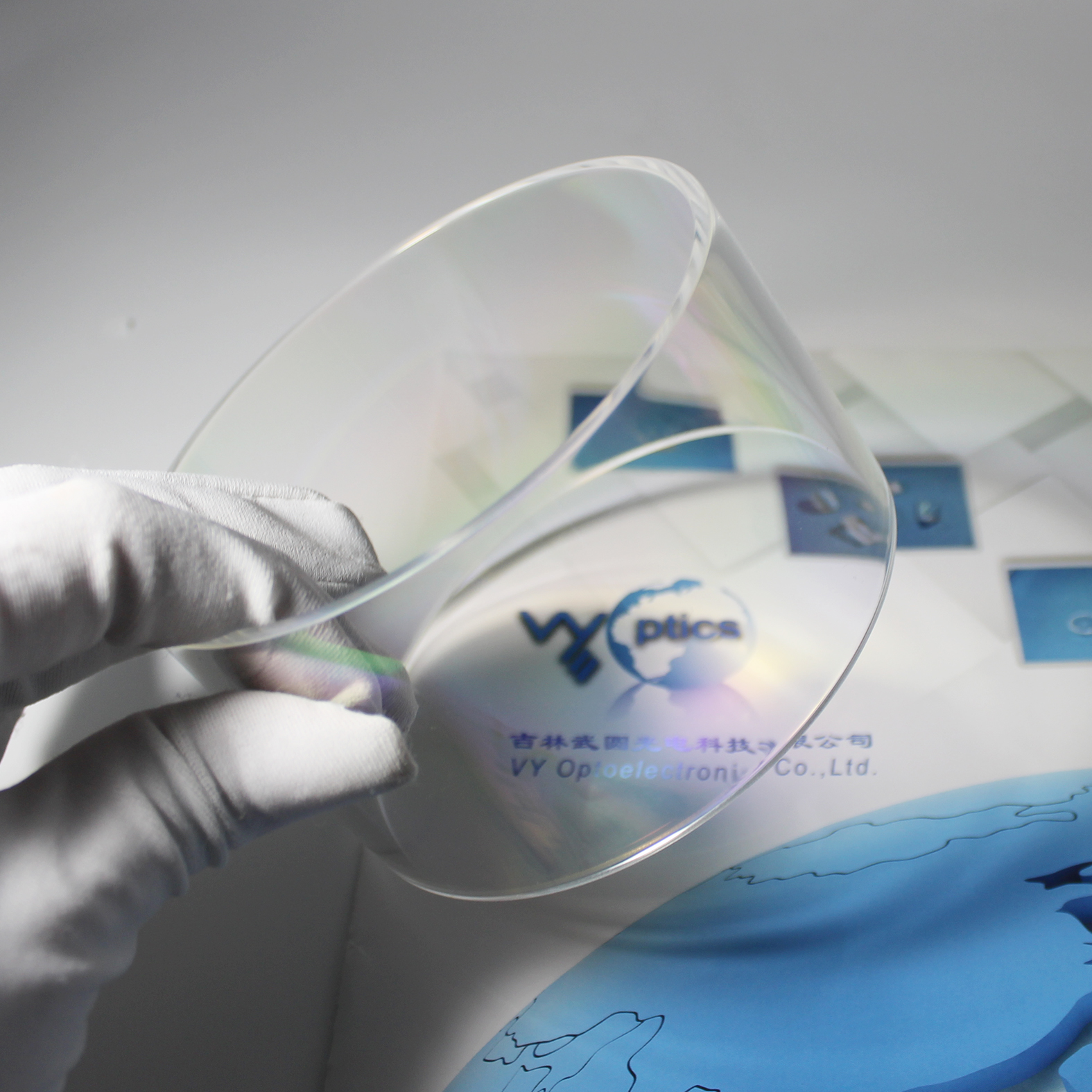

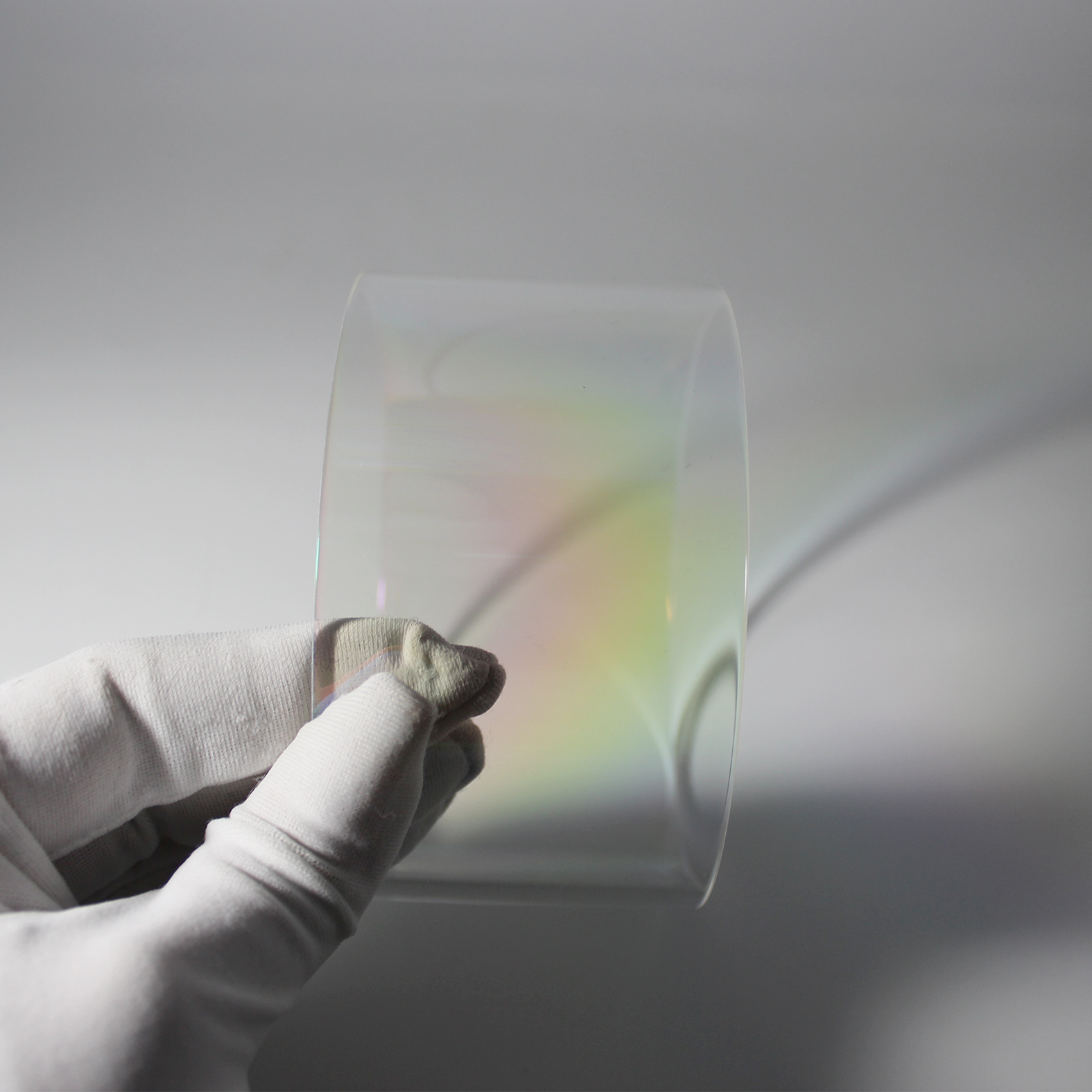

Picture of Lidar Protective Cover
Specification of Hyper Hemispherical Dome
Specification | Data |
Outer Diameter | 98mm |
Inner Diameter | 92mm |
Height | 55mm |
Designed Wavelength | 1550nm |
RMS Distortion Before Wave | <0.5μm |
Surface Quality | 60/40 |
Detailed Video Of Lidar Sensors Protective Glass Cover
Production workshop of VY Optoelectronics Co.,Ltd.
