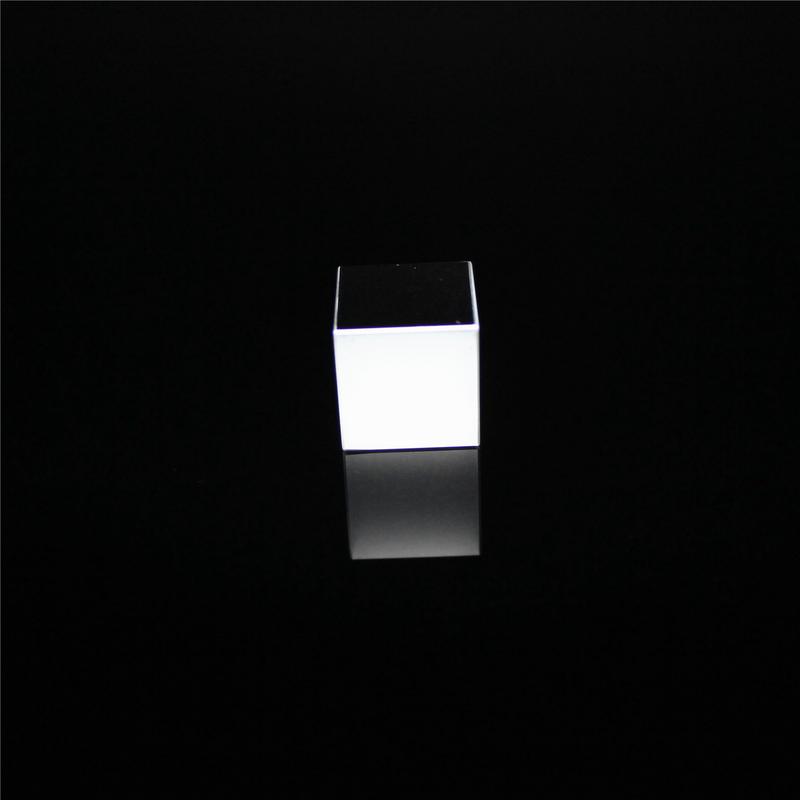

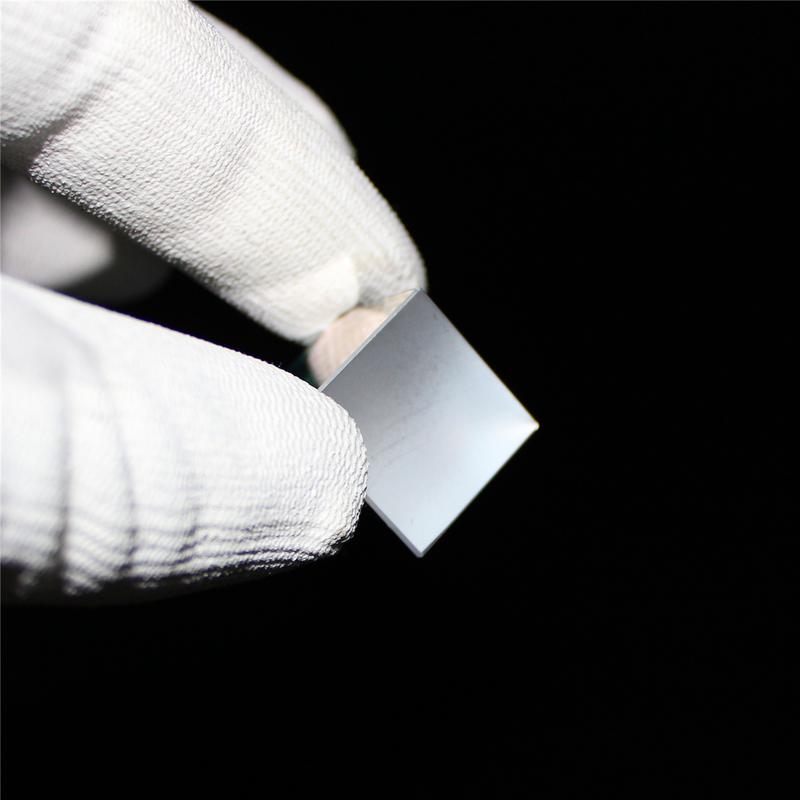

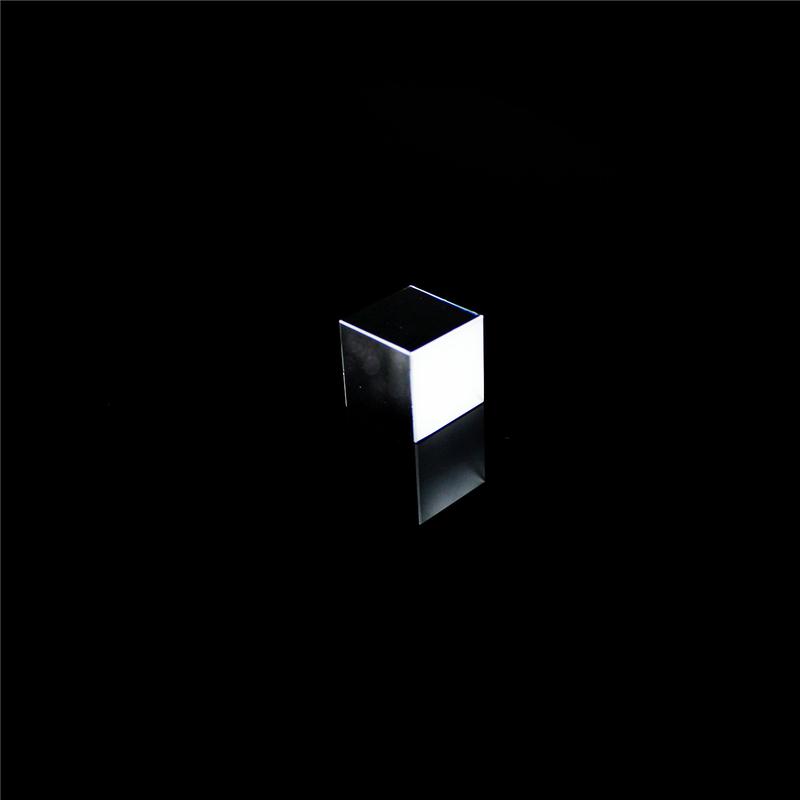

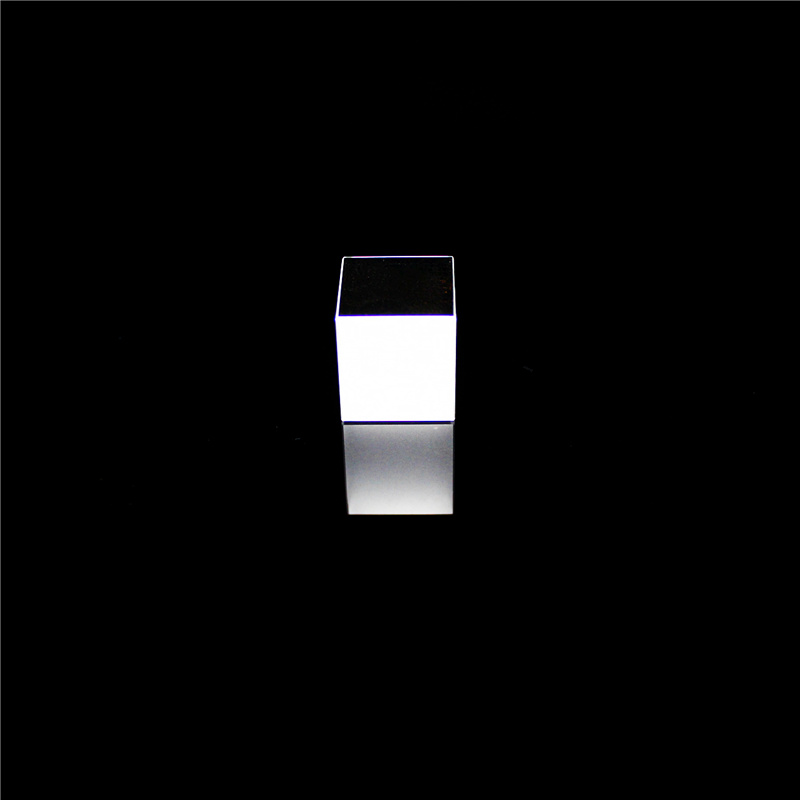

Beamsplitter cube

Material: BK7 glass, PMMA, PC, Fused Silica, Sapphire etc.
Dimension: 0.5mm - 200mm
Surface Accuracy: lambda/20
Size Tolerance: +/-0.01mm
Angle Tolerance: +/-30 sec
Coating: AR, HR, HT, customized as requested

      Cube Beamsplitters are a type of Beamsplitter used in many life science or laser applications. Beamsplitter Cube are used to split incident light into two separate components. Beamsplitter Cubes are durable, easy to mount Beamsplitters that feature equal optical path lengths.

      VY Optics' Cube Beamsplitters are available for optimal performance in the Visible or Infrared (IR) Spectrum, with anti-reflection coating options designed for popular laser wavelengths or wavelength ranges. Standard Cube Beamsplitters, which are used in many illumination or teleprompter assemblies, split light by a percentage of overall intensity. Polarizing Cube Beamsplitters, which are ideal for semiconductor or photonics instrumentation, split unpolarized light into S-Polarization and P-Polarization states. Non-Polarizing Cube Beamsplitters split light without affecting the incident light’s polarizations states. VY Optics’ Beamsplitters are easily integrated into an optical system using a variety or prism holders or Cube Beamsplitter adapters.

      Drawing indicated for your reference, we could also produce beamsplitter cube as per your request.
